DIN RAIL PV
Part Number: 3947

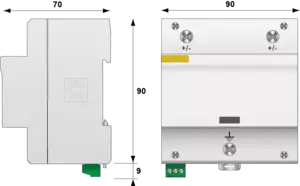

DS60VGPV-1000
- UL Type 1 CA DC SPD for PV Systems
- VG Technology for Maximum Performance
- Zero Leakage Current
- Zero Current Working
- Imax : 40kA/pole at 8/20µs
- In : IEC 20kA/pole, UL 10kA/pole at 8/20µs
- UL 1449 4th Edition Recognized
Datasheet
|
Max. discharge current
max. withstand @ 8/20 µs by pole
|
Imax | 40 kA |
|
Voltage Protection Level
VPR
|
V (+)-(-) | 4000 V |
|
Voltage Protection Level
VPR
|
V (+)-G | 3000 V |
|
Voltage Protection Level
VPR
|
V (-)-G | 3000 V |
|
Technology
|
VG Technology (MOV+GSG) |
|
|
Connection to Network
|
By screw terminals: 4-25mm² |
|
|
Mounting
|
Symmetrical rail 35 mm (EN 60715) |
|
|
Operating temperature
|
Tu | -40/+85°C |
|
Protection rating
|
IP20 |
|
Certification
|
UL |
