DIN RAIL PV

DS50PVUS-1500/51
Part Number 48057155
DS50PVUS-1500/51
Availability:
$255.00 (excl. tax)
Add to cart

Available within 3 weeks

  • MOV Technology
  • UL1449 5th Edition - Type 1
  • 40kA Surge Current Rating
  • Visual fault indicator and remote contacts
  • 10-Year warranty
Contact Us
Select another reference:
Network
 PV network 1250 Vdc
Protection mode(s)
 Common/Differential mode
POWER SPD TYPE
 UL1449 TYPE 1 LISTED
VOLTS
 (V) 1500
AC/DC/DC PV/RF
 DC PV
PHASE
 (PH) -
AMPS
 (A) N/A
AMBIENT MIN
 (C) -40
AMBIENT MAX
 (C) +85
MODES
 DC+-DC-, DC+-G, DC--G
VPR
 (V) 4000/4000/4000
MCOV
 (V) 1500/1500/1500
IN
15 impulses 8/20µs
 (kA) 10
SCCR
 (kA) 100
IMAX
8/20µs
 (kA) 40
Technology
 MOV
Connection to Network
 By screw terminals: 2.5-25mm² / by bus
Format
 Plug-in modular box
Failsafe mode
 Disconnection SPD of the PV line
Weight
 0.334 kg
TECHNOLOGY
 MOV
NETWORK CONFIGURATION
 3 poles, 2W+G
CONNECTION METHOD
 SPD-Screw Terminal (8-12AWG), Terminal blocks 6AWG
MOUNTING
 DIN RAIL
MATERIAL
 Thermoplastic UL94-V0
NEMA RATING (IP RATING)
 NEMA 2 (IP20)
FAIL-SAFE BEHAVIOR
 Disconnection via fuse-link
REAL-TIME DIAGNOSTICS
 Visual indicator and remote contacts
DIMENSIONS
 See diagram

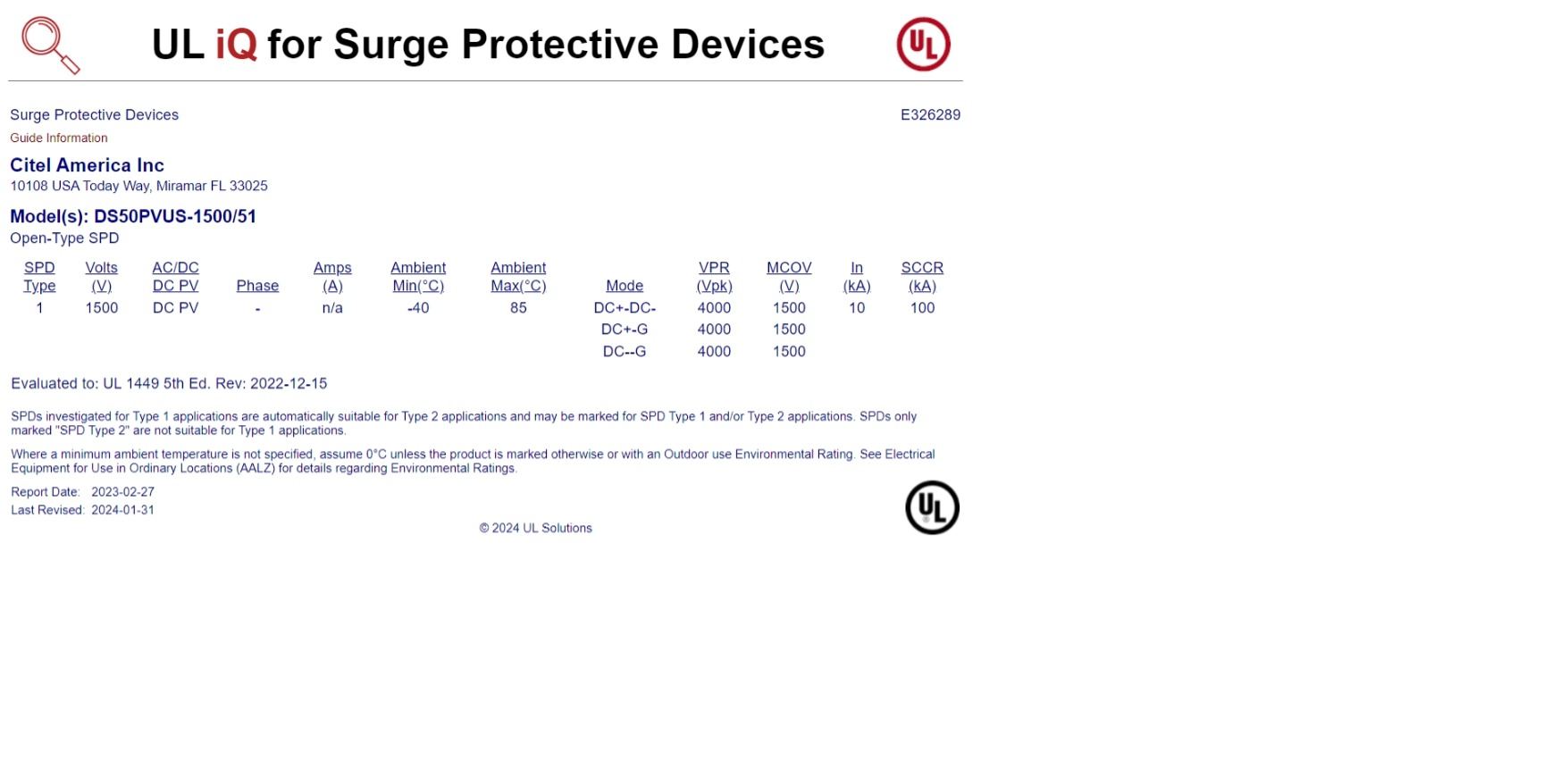

Certification
 UL Listed
UL STANDARD
 UL1449 5th Edition
UL FILE NUMBER
 E326289
