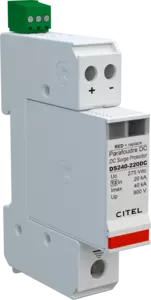

DC Power SPD- Imax 40kA - In 20kA - Modular

DS240S-220DC
Part Number 310211
DS240S-220DC
Availability:
$113.00 (excl. tax)

Available within 3 weeks

  • MOV Technology
  • UL1449 Type 4CA
  • 40kA Surge Current Rating per module
  • Visual fault indicator and remote contacts
  • 10-Year warranty



Network

DC or PV network 220Vdc

Max. DC operating voltage
Uc

275 Vdc

Total Maximum discharge current
max. total withstand @ 8/20 µs
Imax Total

80 kA

Protection mode(s)

Common mode

POWER SPD TYPE

IEC Type 2

VOLTS
(V)

220

AC/DC/DC PV/RF

DC

PHASE
(PH)
AMPS
(A)

N/A

AMBIENT MIN
(C)

-40

AMBIENT MAX
(C)

+85

MODES

DC+-G or DC--G

IN
15 impulses 8/20µs
(kA)

20

SCCR
(kA)

n/a

IMAX
8/20µs
(kA)

40

Technology

MOV

Connection to Network

By screw terminals: 1.5-10mm² (actives wires) and 2.5-25mm² (ground)

Format

Plug-in modular box

Outdoor application

No

Failsafe mode

Disconnection from DC network

TECHNOLOGY

MOV

NETWORK CONFIGURATION

2W+G

CONNECTION METHOD

SPD-Screw Terminal (8-12AWG), Terminal blocks 6AWG

MOUNTING

Wall mount

MATERIAL

Thermoplastic UL94-V0

NEMA RATING (IP RATING)

NEMA 2 (IP20)

FAIL-SAFE BEHAVIOR

Disconnection via fuse-link

REAL-TIME DIAGNOSTICS

Visual indicator and remote contacts

DIMENSIONS

See diagram

WEIGHT

0.30 lbs

Certification
UL STANDARD

UL1449 5th Edition

UL CATEGORY

VZCA2, VZCA8

UL FILE NUMBER

E326289

STANDARDS

IEC 61643-11, NOM-003-SCFI-2014, NOM-001-SCFI-1993

ENVIRONMENTAL STANDARDS

ROHS
