DIN RAIL DATA
Part Number: 560209

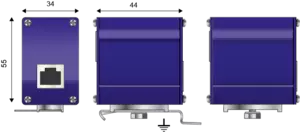

MJ8-ISDN
- TELCO Line Surge Protector
- PSTN, xDSL, ISDN
- RJ45 in/out
- DIN Rail, Screw Lug, and Flange Mounting
- IEC61643-21 compliant
Certificates
Datasheet
|
Network
|
ISDN, 48 V line |
|
|
Nominal line voltage
|
Un | 48 Vdc |
|
Max. DC operating voltage
|
Uc | 60 Vdc |
|
Max. frequency
|
f max. | > 10 MHz |
|
Max. data rate
|
30 Mbps |
|
|
Insertion loss
|
< 1 dB |
|
|
Max. load current @25°C
|
IL | 2 A |
|
Nominal Discharge Current, X-C (Line/Earth)
8/20µs Test x 10 - C2 Category
|
In L/PE | 2000 A |
|
Protection Level
C3 (10/1000μs), 300 applications@10 A, Y-Y (Line/Line)
|
Up | 70 V |
|
Protection Level
C3 (10/1000μs), 300 applications@10 A, Y-C (Line/Earth)
|
Up | 70 V |
|
Impulse current
2 x 10/350µs Test - D1 Category
|
Iimp | 500 A |
|
NOMINAL DC LINE VOLTAGE
|
Vdc | 48 |
|
MAX. DC LINE VOLTAGE
|
Vdc | 60 |
|
AMBIENT MIN
|
(C) | -40 |
|
AMBIENT MAX
|
(C) | +85 |
|
PROTECTION LEVEL
|
(V) | 70 |
|
IMAX
8/20µs
|
(kA) | 16 |
|
MAX. DATA RATE
|
Gbps | .03 |
|
MAX. FREQUENCY
|
Mhz | 10 |
|
Technology
|
GDT+TVS diode |
|
|
Connection to Network
|
RJ45 connector Female input/output |
|
|
Format
|
Connector RJ45 |
|
|
Mounting
|
DIN rail / Wall / Plate |
|
|
Accessory(s) provided
|
DIN rail adapter, screw, screw nut, earthing plate, countersunk screw, cable shoe |
|
|
Operating temperature
|
Tu | -40/+85°C |
|
Protection rating
|
IP20 |
|
|
Failsafe mode
|
Short-circuit - transmision cut-off |
|
|
Pinout
|
2-pairs (3-6)(4-5) |
|
|
TECHNOLOGY
|
SAD-GDT |
|
|
CONNECTOR TYPE
|
RJ45 |
|
|
PIN OUT
|
[1-2][3-6][4-5][7-8] |
|
|
MOUNTING
|
Mounting Flange, Screw Lug, DIN Rail |
|
|
MATERIAL
|
Aluminum cast |
|
|
NEMA RATING (IP RATING)
|
NEMA 1 (IP20) |
|
|
DIMENSIONS
|
See diagram (mm) |
