DIN RAIL DATA

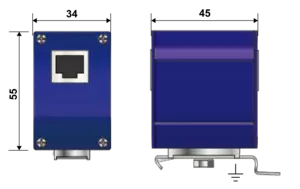

MJ8-CAT5E
Part Number 560201
MJ8-CAT5E
Availability:
$79.00 (excl. tax)

Available within 3 weeks

  • Cat.5,5E Surge Protector
  • Hybrid GDT and Diode Technology
  • Bi-Directional Protection
  • Shielded Connector Configurations
  • DIN Rail, Screw Lug, and Flange Mounting
  • UL497B Listed


Select another reference:

Network

Gigabit Ethernet (Cat.5E)

Max. DC operating voltage
Uc

8 Vdc

Max. frequency
f max.

250 MHz

Max. data rate

10/100/1000 Mbps

Insertion loss

< 1 dB

Protection Level
C3 (10/1000μs), 300 applications@10 A, X-X (Line/Line)
Up

20 V

Protection level
C3 (10/1000μs), 300 applications@10 A, X-C (Line/Earth)
Up

20 V

Impulse current
2 x 10/350µs Test - D1 Category
Iimp

500 A

Nominal Discharge Current, X-C (Line/Earth)
8/20µs Test x 10 - C2 Category
In L/PE

2000 A

Capacity
Maximum
pF

<25

NOMINAL DC LINE VOLTAGE
Vdc

5

MAX. DC LINE VOLTAGE
Vdc

8

WIRES

8W+Shield+Ground

LINE CURRENT MAX
(A)

1

AMBIENT MIN
(C)

-40

AMBIENT MAX
(C)

+85

PROTECTION LEVEL
(V)

20

IMAX
8/20µs
(kA)

16

MAX. DATA RATE
Gbps

1

MAX. FREQUENCY
Mhz

100

Technology

GDT+TVS diode

Connection to Network

RJ45 shielded connectors Female input/output

Format

Connector RJ45

Accessory(s) provided

DIN rail adapter, screw, screw nut, earthing plate, countersunk screw, cable shoe

Failsafe mode

Short-circuit

Pinout

(1-2)(3-6)(4-5)(7-8)

Weight

0.114 kg

TECHNOLOGY

SAD-GDT

NETWORK CONFIGURATION

Single C6A Line

CONNECTOR TYPE

Shielded RJ45

PIN OUT

[1-2][3-6][4-5][7-8]

NEMA RATING (IP RATING)

NEMA 2 (IP20)

DIMENSIONS

See diagram

Certification

UL 497B

UL STANDARD

UL497B

UL CATEGORY

QVGQ

UL FILE NUMBER

E184939

STANDARDS

IEC 61643-21, NOM-003-SCFI-2014, NOM-001-SCFI-1993

ENVIRONMENTAL STANDARDS

ROHS
