Comparison TPS ServiceTrack ST TK-ST200-3Y600-L
Altrernate CITEL MP100-347Y
Surge Protective Device (SPD)

Intended Application

System

System Voltage347/600Vac
Number of Phases3Y
All ModesL-L, L-N, L-G, N-G + Ground
Configuration3PH, 4W+G, Wye

PRODUCT COMPARISON TABLE

This page collects publicly available data from ul.com and assembles a side by side
reference table for a convenient product cross reference.

Manufacturer Citel Logo TPS logo
UL File #E326289n/a
Model
MP100-347Y

TK-ST200-3Y600-L

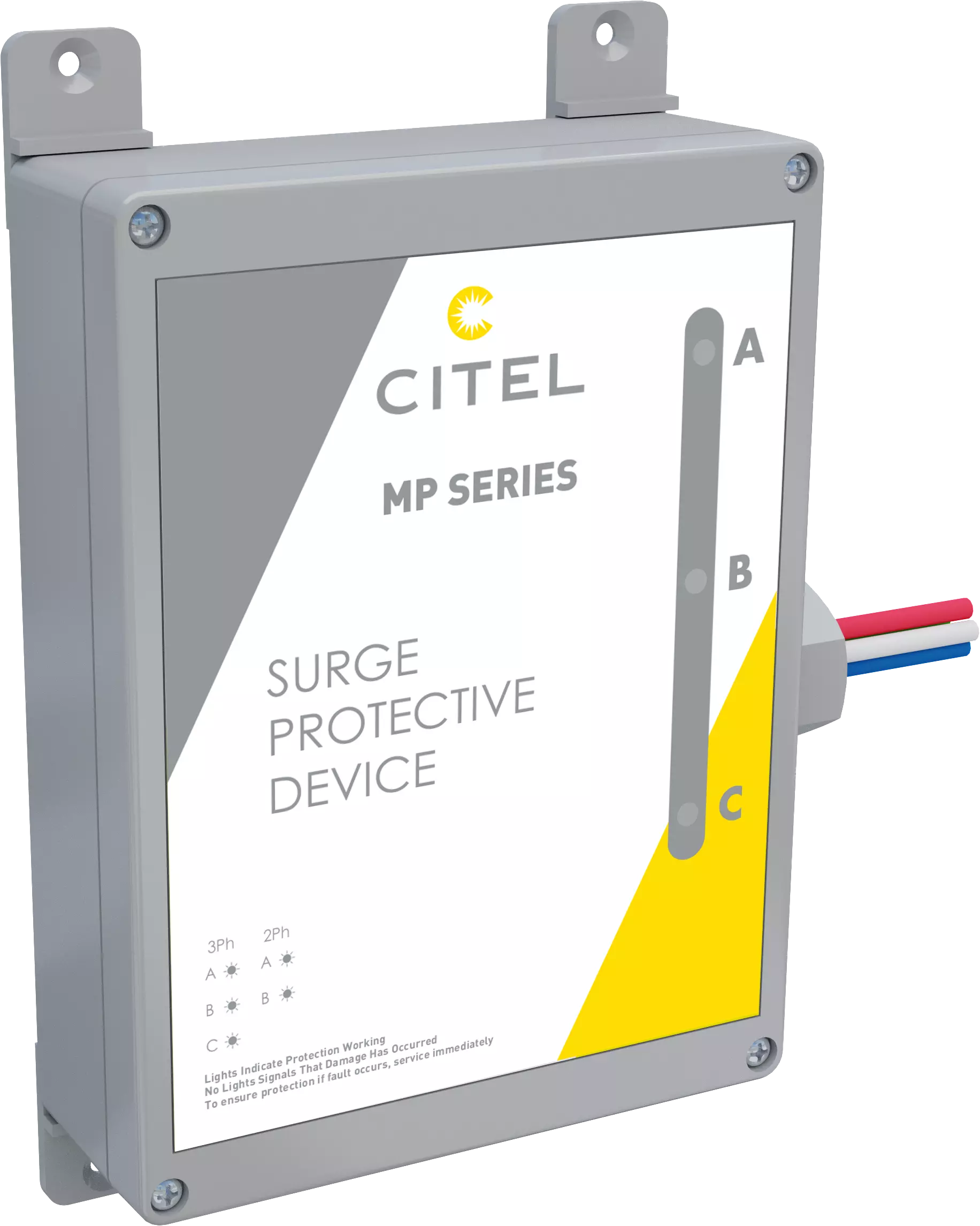

Product Image

UL.com Ratings


UL CARD

NO UL CARD
UL STANDARD
UL 1449 5th Ed.
n/a
UL APPROVALLISTEDn/a
UL MARKdescriptionn/a
SPD TypeUL1449 TYPE 1 LISTEDn/a
Volt (V)347/600-
AC/DC
DC PV
AC-
Phase3Y-
Ambient Min (C)-35-
Ambient Max (C)85-
VPR (Vpk)
L-L
L-N
L-G
N-G
3000
1800
1800
1800
-
-
-
-
MCOV
L-L
L-N
L-G
N-G
1100
550
550
550
-
-
-
-
In (kA)20-
SCCR (kA)200-

Additional
Data Sheet Ratings

Protection CircuitMulti - TMOV-
Fail-Safe BehaviorYes, no upstream over
current protection required
-
StandardsNOM-003-SCFI-2014-
Real-Time DiagnosticsLED Indicator &
Optional Remote Contacts
-
NEMA
Rating
4X (IP67)-
Environmental StandardsROHS-
Connection Method36" #10 AWG LEADS-
MaterialPolycarbonate-
MountingFlange Mount-
Modes of ProtectionCommon Mode
Differential Mode
-
Warranty10-years-
Notes
-

Determining the acceptability of an SPD for your UL equipment for UL 508A Control Panels and All Other UL Listed Equipment

The UL inspector will first consider the SPD type when determining it’s acceptability for a given application or piece of equipment. This will include UL 508A as well as all other UL Listed equipment. The first level compliance is based on the UL Approval (LISTED or RECOGNIZED) of the SPD or UL SPD Type and it’s Suitable Ratings. This means that it has to meet all safety, performance, environmental and electrical system ratings of the application. If any of these criteria are not fully met, it will require a Procedure Description, a File Update and/or Additional Testing. These actions will require additional costs that may be substantial. For this reason, it is in the interest of the specifier to use UL LISTED SPD’s to eliminate any uncertainty or to make sure the UL RECOGNIZED SPD is selected at the time of UL submittal of the equipment.

Approval Considerations Table based on UL SPD Type

UL
Mark
UL1449
SPD Type
Suitable
Ratings
Procedure
Described
File
Update or
Additional
Testing
Notes
1

2
YesNoNoThe only requirement is that the SPD must match electrical and environmental ratings of the UL 508A Control Panel.

A UL field inspection of the control panel with the SPD installed is required as a part of a standard follow-up service visit.
1CA

2CA

4CA

5
YesYesYesYes – All UL recognized SPD’s require a UL engineering evaluation of the SPD’s existing UL1449 E–file.

This will result, at a minimum, in a cost to update the UL file and may also require testing that would result in additional costs.
UL data is publicly available with a free account at UL.com. The data has been reviewed by our engineering department. From time to time, the applicants UL file (including CITEL's) may become changed or updated at UL.com due to new testing or corrections to a report. At the time of this comparison you will find this information to be accurate to the UL web site. If you find any information requires an update, please bring to our attention and it will be updated immediately.
