ASCO SHA-1250 Alternate CITEL M50F-120S-B
|
|
|
CITEL M50F-120S-B | ASCO/EDCO/SCHNEIDER |
Intended Application System | |
| System Voltage | 120Vac |
| Number of Phases | 1-Phase |
| Conductors | 2 Wire + Ground |
| Configuration | Single Phase |
PRODUCT COMPARISON
This page collects publicly available data from ul.com and assembles a side by side reference table for a convenient product cross reference.
| Manufacturer |
|
|
| UL File # | E326289 | E324279 |
| Model | M50F-120S-B | SHA-1250 |

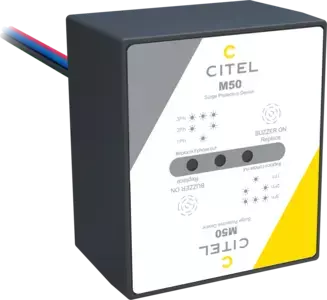

| Product Image |
|
|
UL.com Ratings | UL CARD | - |
| UL APPROVAL | LISTED | - |
| UL MARK |  | - |
| SPD Type | 2 | - |
| Volt (V) | 120 | - |
| AC/DC DC PV | AC | - |
| Phase | 1 | - |
| Amps (A) | n/a | - |
| Ambient Min (C) | -35 | - |
| Ambient Max (C) | 85 | - |
| Mode | ||
| - L-N L-G N-G | - L-N L-L N-G | |
| VPR (Vpk) | ||
| L-L L-N L-G N-G | - 700 1200 1200 | - - - - |
| MCOV | ||
| L-L L-N L-G N-G | - 140 140 120 | - - - - |
| In (kA) | 20 | - |
| SCCR (kA) | 150 | - |
Additional | ||
| Surge Current Rating (kA) Per Phase | 50 | 45 |
| Surge Current Rating (kA) Total | 150 | 60 |
| Protection Circuit | Hybrid TMOV+GSG + L-C Filter | MOV + L-C Filter |
| Leakage Current | No | Yes |
| TOV Optimized | Yes | No |
| Diagnostics | Indicator & Remote Contacts | LED |
| Environmental Rating | NEMA 6 (exceeds NEMA 4X or 4) | IP20 |
| # of Wires | - | - |
| Modes of Protection | Common Mode Differential Mode | Common Mode Differential Mode |
| Warranty | 10-years | Limited 5-years |
| Notes |
| - |
UL data is publicly available with a free account at UL.com. The data has been reviewed by our engineering department. From time to time, the applicants UL file (including CITEL's) may become changed or updated at UL.com due to new testing or corrections to a report. At the time of this comparison you will find this information to be accurate to the UL web site. If you find any information requires an update, please bring to our attention and it will be updated immediately. |
|
| |
|---|---|
