DS72US-120S/G-F-ASSM ASCO SHA-1250
CITEL DS72US-120S/G-F-ASSM
Surge Protector
ASCO/EDCO/SCHNEIDER
SHA-1250
Surge Protector

Intended Application System

System Voltage120Vac
Number of Phases1-Phase
Conductors2 Wire + Ground
ConfigurationSingle Phase

PRODUCT COMPARISON

This page collects publicly available data from ul.com and assembles a side by side reference table for a convenient product cross reference.

Manufacturer Citel Logo ASCO POWER TECHNOLOGIES
UL File #E326289E324279
Model DS72US-120S/G-F-ASSM
SHA-1250

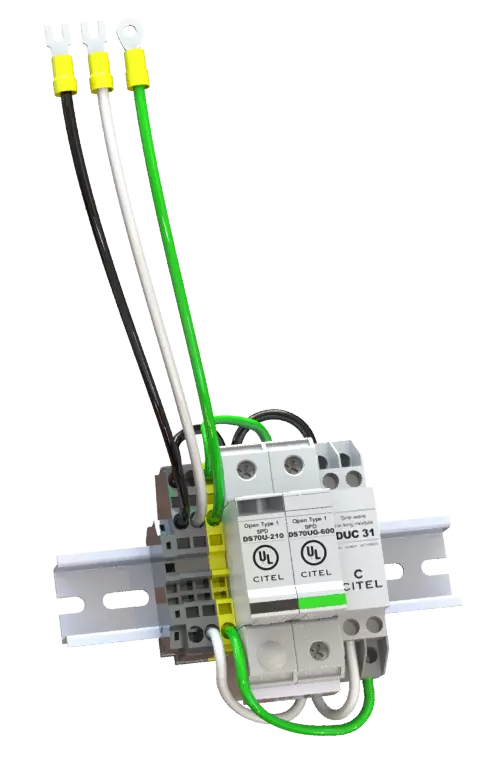

Product Image DS72US-120S/G-F-ASSM ASCO SHA-1250

UL.com Ratings

UL CARD

-
UL APPROVALLISTED-
UL MARK-
SPD Type1-
Volt (V)120-
AC/DC
DC PV		AC-
Phase1-
Amps (A)n/a-
Ambient Min (C)-40-
Ambient Max (C)85-
Mode
-
L-N
L-G
N-G		-
L-N
L-L
N-G
VPR (Vpk)
L-L
L-N
L-G
N-G		-
800
1500
1200		-
-
-
-
MCOV
L-L
L-N
L-G
N-G		-
210
255
255		-
-
-
-
In (kA)20-
SCCR (kA)200-

Additional
Data Sheet Ratings
Surge Current
Rating (kA) Per Phase		7545
Surge Current
Rating (kA) Total		15060
Protection CircuitHybrid TMOV+GSG + L-C FilterMOV + L-C Filter
Leakage CurrentNoYes
TOV OptimizedYesNo
DiagnosticsIndicator &
Remote Contacts		LED
Environmental
Rating		IP20IP20
# of Wires--
Modes of ProtectionCommon Mode
Differential Mode		Common Mode
Differential Mode
Warranty10-yearsLimited 5-years
Notes
-
UL data is publicly available with a free account at UL.com. The data has been reviewed by our engineering department. From time to time, the applicants UL file (including CITEL's) may become changed or updated at UL.com due to new testing or corrections to a report. At the time of this comparison you will find this information to be accurate to the UL web site. If you find any information requires an update, please bring to our attention and it will be updated immediately.
