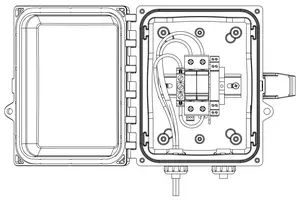

INTEGRATED ENCLOSURES
Part Number: 890800
CAD2-120S-124-A
AC Power and Dataline Surge Protector
- AC Imax 75kA 8x20 µs
- Data Imax: 20 kA 8x20 µs
- Replaceable Modules for Fast and Easy Maintenance
- Remote Signalization
- Visual Fault Indication
- Nema 4X Enclosure
- UL 1449 5TH Edition Listed (Type 1)
Datasheet|
AC SURGE PROTECTION
|
SEE BELOW |
|
|
VOLTS
|
(V) | 120 |
|
AC/DC/DC PV/RF
|
AC |
|
|
PHASE
|
(PH) | 1 |
|
AMBIENT MIN
|
(C) | -35 |
|
AMBIENT MAX
|
(C) | +60 |
|
MODES
|
L-L, L-G, L-N, N-G |
|
|
VPR
|
(V) | 1200/800/700 |
|
MCOV
|
(V) | 300/150/150 |
|
IN
15 impulses 8/20µs
|
(kA) | 20 |
|
SCCR
|
(kA) | 100 |
|
IMAX
8/20µs
|
(kA) | 75 |
|
REMOTE SIGNALIZATION
|
AC MAX: 250V/0.5A, DC MAX:30V/3A, MIN. AC-DC-100mA |
|
|
DATA LINE SURGE PROTECTION
|
SEE BELOW |
|
|
NOMINAL LINE VOLTAGE
|
(Vdc) | 24 |
|
MAX. LINE VOLTAGE
|
(Vdc) | 170 |
|
LINE CURRENT MAX.
|
(mA) | 300 |
|
MAX. FEQUENCY
|
(MHz) | 3 |
|
IMAX-8/20us 1x
|
(kA) | 20 |
|
IN-8/20us-10x
|
(kA) | 10 |
|
Iimp-10/350us-2X
|
(kA) | 5 |
|
RESIDUAL VOLTAGE
|
(V) | 40 |
|
INSTALLATON LOCATION
|
INDOOR/OUTDOOR |
|
|
TECHNOLOGY
|
AC-MOV, DATA LINE-GDT-SAD |
|
|
AC CONNECTION
|
2W+G, Prewired- 5ft #10 AWG Wire- P-Blk, N-White, G-Green |
|
|
DATA LINE CONNECTION
|
2W+SHIELD+G, 16-22 AWG WIRE, SCREW TERMINALS |
|
|
MOUNTING
|
SURFACE MOUNT |
|
|
MATERIAL
|
Polycarbonate |
|
|
NEMA RATING (IP RATING)
|
4X (IP67) |
|
|
REAL-TIME DIAGNOSTICS
|
Visual indicator and remote contacts |
|
|
DIMENSIONS
|
8X6X4 -Inches |
|
Environmental standards
|
EU RoHS |
|
|
UL STANDARD
|
UL1449 5th Edition |
|
|
UL CATEGORY
|
VZCA |
|
|
UL FILE NUMBER
|
E326289 |
