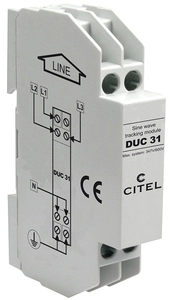

DIN RAIL AC
Part Number: 357931
DUC 31
- EMI Line Filter
- AC Systems to 600V-50-60Hz
- Din Rail Mounted
- UL 1283
Select another reference:
DUC 31
Certificates
Datasheet
UL
|
Network
|
For 3-phase AC networks up to 347/600 V (including 230/400 V) |
|
|
VOLTS
|
(V) | 347/600 |
|
CAPACITANCE
|
(pF) | C1=C2=C3-6.8nF, C4-4.7nF |
|
Connection to Network
|
By screw terminals: 2.5mm² max. |
|
|
Mounting
|
Symmetrical rail 35 mm (EN 60715) |
|
|
Operating temperature
|
Tu | -40/+85°C |
|
Protection rating
|
IP20 |
|
Certification
|
UL1283 |
