UL121201 Hazardous Locations- Imax 40kA - In 20kA - Modular
DS44S-690/G
Part Number 461832
- MOV Technology
- UL1449 Type 4CA
- 40kA Surge Current Rating
- Visual fault indicator and remote contacts
- 10-Year warranty
Select another reference:
Network
|
230/400 V 3-phase+N | |
Total Maximum discharge current
max. total withstand @ 8/20 µs
|
Imax Total | 40 kA |
Protection mode(s)
|
Common/Differential mode | |
POWER SPD TYPE
|
UL1449 5th Ed. TYPE 4CA | |
VOLTS
|
(V) | 480/277 |
AC/DC/DC PV/RF
|
AC | |
PHASE
|
(PH) | 3Y |
AMPS
|
(A) | N/A |
AMBIENT MIN
|
(C) | -35 |
AMBIENT MAX
|
(C) | +60 |
MODES
|
L-L, L-N, L-G, N-G | |
MLV
|
(V) | 3890/2550/2780/1140 |
MCOV
|
(V) | 680/420/420/255 |
IN
15 impulses 8/20µs
|
(kA) | 20 |
SCCR
|
(kA) | n/a |
IMAX
8/20µs
|
(kA) | 40 |
Technology
|
MOV+GDT | |
Connection to Network
|
By screw terminals: 2.5-25mm² / by bus | |
Format
|
Plug-in modular box | |
Failsafe mode
|
Disconnection from AC network | |
Weight
|
0.331 kg | |
TECHNOLOGY
|
MOV+GSG | |
NETWORK CONFIGURATION
|
3PH, 4W+G, Wye | |
CONNECTION METHOD
|
SPD-Screw Terminal (8-12AWG), Terminal blocks 6AWG | |
MOUNTING
|
Wall mount | |
MATERIAL
|
Thermoplastic UL94-V0 | |
NEMA RATING (IP RATING)
|
NEMA 2 (IP20) | |
FAIL-SAFE BEHAVIOR
|
Disconnection via fuse-link | |
REAL-TIME DIAGNOSTICS
|
Visual indicator and remote contacts | |

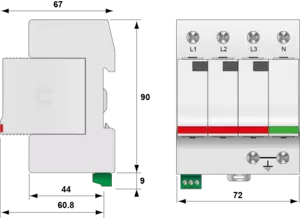

DIMENSIONS
|
See diagram | |
WEIGHT
|
1.20 lbs | |
SPARE PART
|
DSM40-400, DSM40G-600 |
Certification
|
/ TUV Süd | |
UL STANDARD
|
UL1449 5th Edition | |
UL CATEGORY
|
VZCA, VZCA7 | |
UL FILE NUMBER
|
E326289 | |
STANDARDS
|
NOM-003-SCFI-2014, NOM-001-SCFI-1993 | |
ENVIRONMENTAL STANDARDS
|
ROHS |
