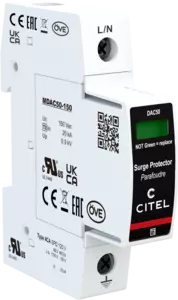

UL TYPE 4CA - Imax 50kA - In 20kA - Modular

DAC50-10-150
Part Number 821110111
DAC50-10-150
  • MOV Technology
  • UL1449 Type 4CA
  • 50kA Surge Current Rating
  • Visual fault indicator and remote contacts
  • 10-Year warranty
Contact Us
Select another reference:
Network
 230/400 V 3-phase
POWER SPD TYPE
 UL1449 5th Ed. TYPE 4CA
VOLTS
 (V) 120
AC/DC/DC PV/RF
 AC
PHASE
 (PH) 1
AMPS
 (A) N/A
AMBIENT MIN
 (C) -40
AMBIENT MAX
 (C) +85
MODES
 L-N
MLV
 (V) 1720
MCOV
 (V) 150
IN
15 impulses 8/20µs
 (kA) 20
SCCR
 (kA) n/a
IMAX
8/20µs
 (kA) 50
Technology
 MOV
Connection to Network
 By screw terminals: 2.5-25mm² (35mm² rigid)
Format
 Plug-in modular box
Failsafe mode
 Disconnection from AC network
Weight
 0.098 kg
TECHNOLOGY
 MOV
NETWORK CONFIGURATION
 1 Pole, 1W+G, 1PH
CONNECTION METHOD
 SPD-Screw Terminal (8-12AWG), Terminal blocks 6AWG
MOUNTING
 Wall mount
MATERIAL
 Thermoplastic UL94-V0
NEMA RATING (IP RATING)
 NEMA 2 (IP20)
FAIL-SAFE BEHAVIOR
 Disconnection via fuse-link
REAL-TIME DIAGNOSTICS
 Visual indicator and remote contacts
DIMENSIONS
 See diagram
WEIGHT
 0.22 lbs
Certification
 OVE / UL
UL STANDARD
 UL1449 5th Edition
UL CATEGORY
 VZCA2
UL FILE NUMBER
 E326289
STANDARDS
 NOM-003-SCFI-2014, NOM-001-SCFI-1993
ENVIRONMENTAL STANDARDS
 ROHS
