Carril DIN Corriente Alterna (CA)
DAC53VGUS-277Y/NN
Código artículo 82113022355
Seleccionar una referencia :
Red
|
230/400 V Trifásica | |
Corriente de descarga máximal total
Capacidad máx. total en onda 8/20µs
|
Imax Total | 150 kA |
UL1449 5th Ed. TYPE 4CA | ||
TENSION
|
(V) | 480/277 |
AC | ||
FASE
|
(PH) | 3Y |
(A) | N/A | |
(C) | -40 | |
(C) | +85 | |
MODOS
|
L-L, L-N | |
(V) | 6720/3320 | |
(V) | 610/305 | |
(kA) | 20 | |
Icc
cortocircuito
|
(kA) | n/a |
(kA) | 50 |
Tecnología
|
Tecnología VG (MOV+GSG) | |
Conexión à la red
|
Por terminales de tornillos : 2.5-25 mm² (35 mm² rigido) | |
Formato
|
Caja modular desenchufable | |
Modo de fallo
|
Desconexión de la red Baja Tensión | |
Peso
|
0.283 kg | |
TECNOLOGIA
|
MOV-GSG | |
CONFIGURACION DE RED
|
3 pole, 3W+G, 3PH Wye | |
FORMA DE CONEXION
|
Screw Terminal (4-13AWG) | |
MONTAJE
|
Din Rail | |
Thermoplastic UL94-V0 | ||
NEMA 2 (IP20) | ||
DESCONEXION SEGURA
|
Disconnection via fuse-link | |
Visual indicator and remote contacts | ||
See diagram | ||
0.62 lbs |

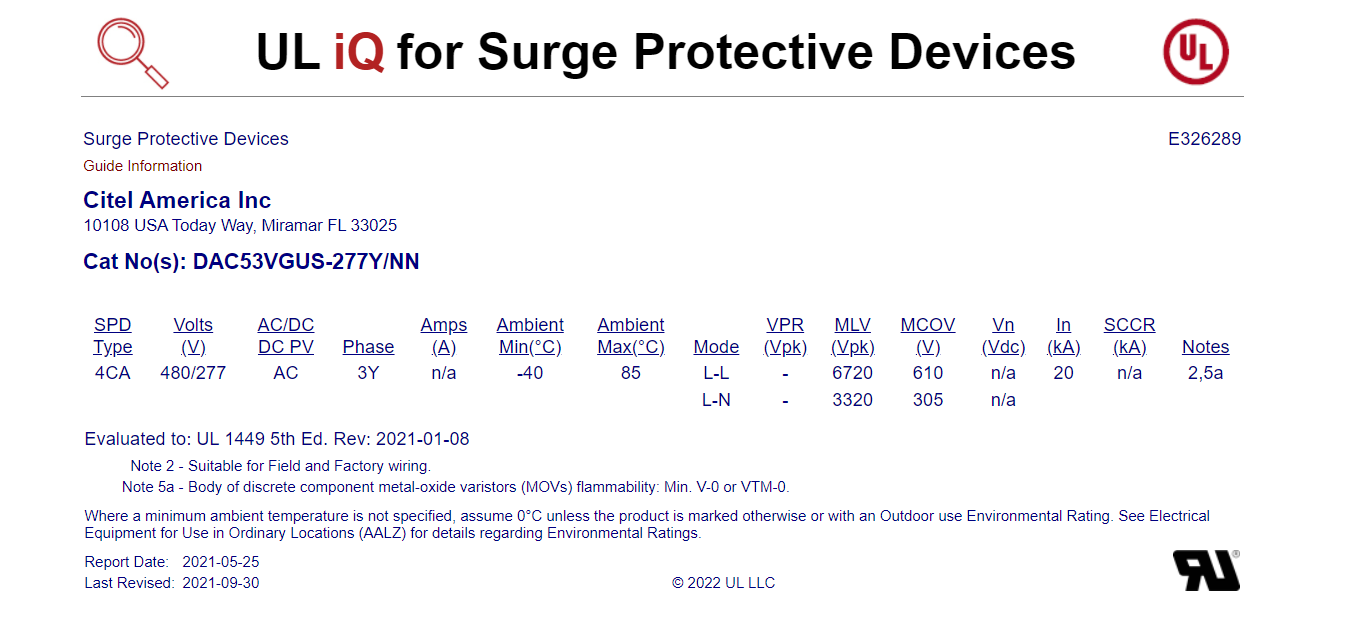

Certificación
|
UL Recognized | |
UL1449 5th Edition | ||
VZCA2 | ||
E326289 | ||
NORMAS
|
NOM-003-SCFI-2014, NOM-001-SCFI-1993 | |
ROHS |
