Surge Protection for Data Centers

Data Center

OVERVIEW

Today's increased reliance on very sensitive electronics makes surge protection an important topic for Data Centers. The Insurance Institute for Business & Home Safety study found that $26 billion dollars was lost due to non-lightning power surges. In addition, there are about 25 million lightning strikes in the US each year that cause between $650M to $1B in losses according to the Insurance Information Institute, State Farm©.

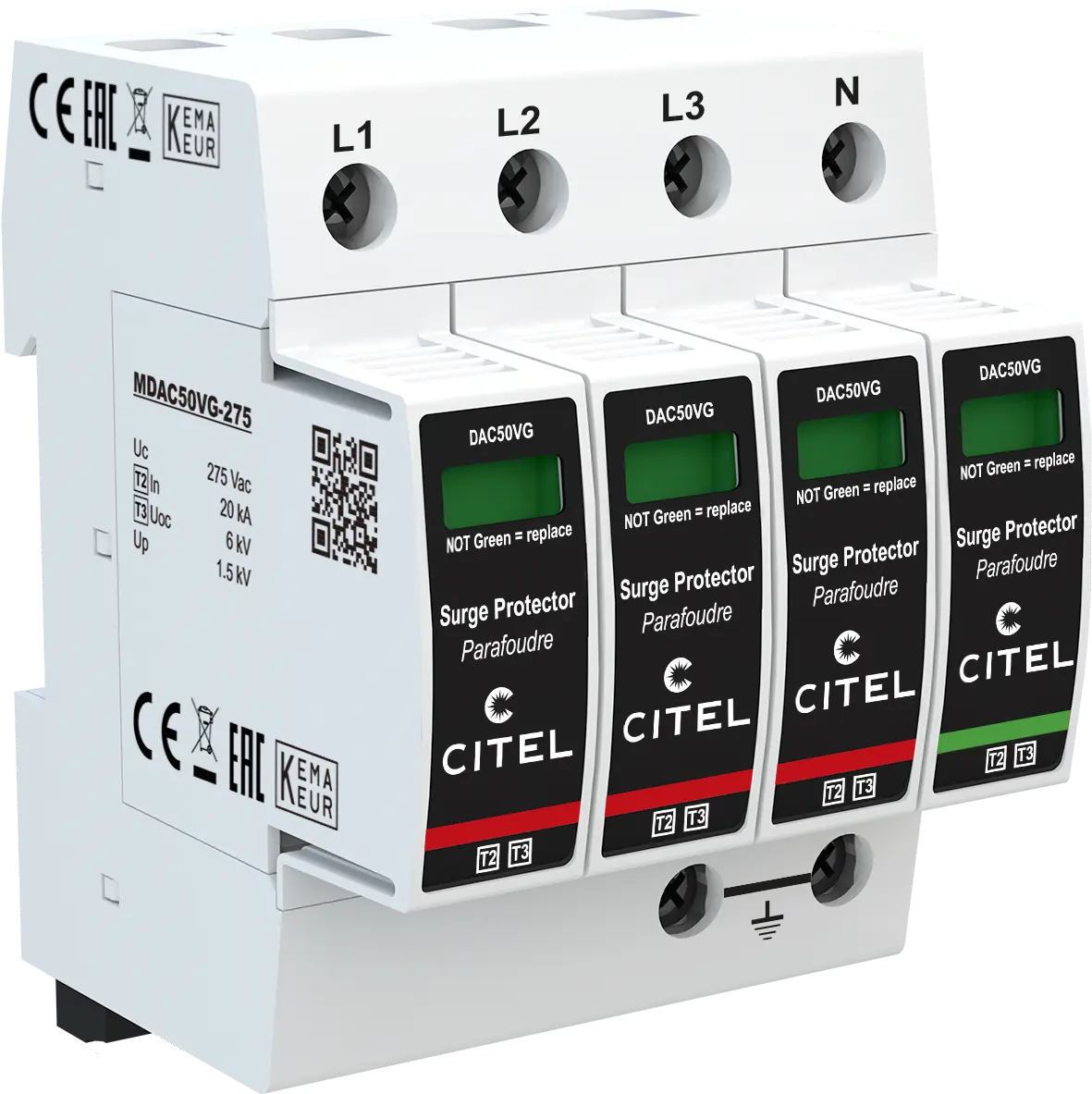

Selecting SPD for Datacenters

NEC/NFPA 70 require that Surge Protective Devices (SPDs) shall be UL1449 Listed. This means selecting a surge protector is easier than it has ever been. There are only a few choices available for SPDs that are UL Listed for any of the most commonly used surge standards including UL1449 5th Edition, UL497B, and UL497E. Given the central function now played by data centers in our present everyday life, their ability to remain operational at all time is more critical than ever. This is why Surge Protections are present at each power distribution levels around the facility to prevent both operational downtime and data losses.

Recommended SPD for Datacenters

Location	Equipment	System	Surge Protector Model#	Link
	Service Entrance Switchgears	480Vac	MDS600E-480D
	Primary Switchboards	480Vac	MS200-480D
	Busway Power Distribution Units (PDU)	347/600Vac	DS74US-347Y
	Floor Power Distribution Units (PDU)	277/480Vac	MP100-277Y
	Remote Power Panels (RPP)	120/208Vac	DS74US-120Y/G

Determining the acceptability of an SPD for Datacenter and All Other UL Listed Equipment

Each of the distribution level will fall under its own UL specific standard such as :
- UL 1558 for switchgears
- UL 891 for switchboards
- UL 67 for panelboards
- UL 508A for industrial control panels (ICP),
- UL 1640 for power distribution units (PDU)
- etc.

The UL inspector will first consider the SPD type when determining it’s acceptability for a given application or piece of equipment. This will include The UL standards mentioned above as well as all other UL Listed equipment. The first level compliance is based on the UL Approval (LISTED or RECOGNIZED) of the SPD or UL SPD Type and it’s Suitable Ratings. This means that it has to meet all safety, performance, environmental and electrical system ratings of the application. If any of these criteria are not fully met, it will require a Procedure Description, a File Update and/or Additional Testing. These actions will require additional costs that may be substantial. For this reason, it is in the interest of the specifier to use UL LISTED SPD’s to eliminate any uncertainty or to make sure the UL RECOGNIZED SPD is selected at the time of UL submittal of the equipment.

Approval Considerations Table based on UL SPD Type

UL Mark	UL1449 SPD Type	Suitable Ratings	Procedure Described	File Update or Additional Testing	Notes
	1 2	Yes	No	No	The only requirement is that the SPD must match electrical and environmental ratings of the UL 67 Control Panel. A UL field inspection of the control panel with the SPD installed is required as a part of a standard follow-up service visit.
	1CA 2CA 4CA 5	Yes	Yes	Yes	Yes – All UL recognized SPD’s require a UL engineering evaluation of the SPD’s existing UL1449 E–file. This will result, at a minimum, in a cost to update the UL file and may also require testing that would result in additional costs.
