DS50PVS-600
DIN RAIL PV
DS50PVS-600
Part Number:
480411
UL Type 1CA DC SPD
- Designed with High Energy MOV’s
- Modular Design for Ease of Maintenance
- Integrated Status Indicator Window
- Imax : 40 kA /pole at 8/20µs
- In : 20 kA /pole at 8/20µs
- UL 1449 4th Edition Recognized
Datasheet

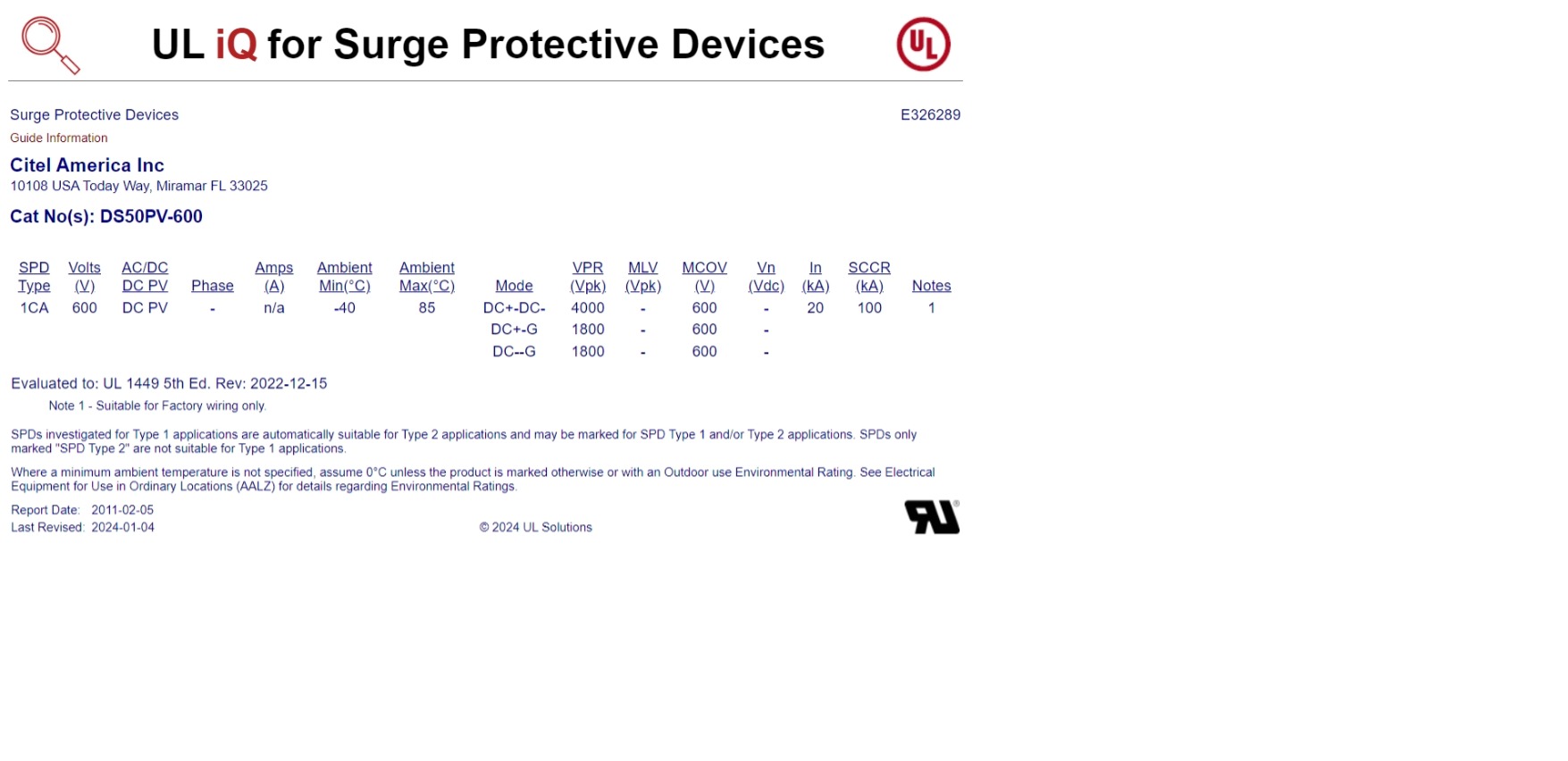

ULCertificate_DS50PVS-600.pdf
Installation Sheet
Tender specifications
Contact Us
Select another reference:
DS50PVS- 800G/51
DS50PVS-1000
DS50PVS-1000G/51
DS50PVS-1500/51
DS50PVS-500
DS50PVS-500/DE
DS50PVS-600
DS50PVS-800
Electrical Properties
Mechanical Properties
Norms
Install
Misc
Schemas
Protection mode(s)
Common/Differential mode
Maximum Discharge Current
kA (+)-(-)
40 kA
Maximum Discharge Current
kA (+)-G
40 kA
Maximum Discharge Current
kA (-)-G
40 kA
POWER SPD TYPE
UL1449 TYPE 1CA
VOLTS
(V)
600
AC/DC/DC PV/RF
DC PV & DC
PHASE
(PH)
-
AMPS
(A)
n/a
AMBIENT MIN
(C)
-40
AMBIENT MAX
(C)
+85
MODES
DC+-DC-,DC+-G,DC--G
MCOV
(V)
670/670/670
IN
(kA)
20
SCCR
(kA)
100
Weight
0.218 kg
TECHNOLOGY
MOV
NETWORK CONFIGURATION
3 poles, 2W+G
CONNECTION METHOD
Screw Terminal (8-12AWG)
MOUNTING
DIN RAIL
MATERIAL
Thermoplastic UL94-V0
NEMA RATING (IP RATING)
NEMA 2 (IP20)
FAIL-SAFE BEHAVIOR
Disconnection via fuse-link
REAL-TIME DIAGNOSTICS
Visual indicator and remote contacts
DIMENSIONS
See diagram (mm)
Certification
UL Recognized
UL STANDARD
UL1449 5th Edition
UL FILE NUMBER
E326289
Wiring type
Screw
Solid wire cross section
mm²
4 mm²
Solid Wire cross section
mm²
25 mm²
Stranded Wire cross section
mm²
4 mm²
Stranded wire cross section
mm²
25 mm²
Wire gauge
AWG
12 AWG
Wire gauge
AWG
4 AWG
Torque
Nm
2.0 - 2.5
Torque
in-lbs
17.8 - 22.1
Strip Length
mm
12.5 mm
Strip Length
in
0.5 in
Operating Temperature
°C
-40 °C
Operating Temperature
°C
85 °C
Operating Temperature
°F
-40 °F
Operating Temperature
°F
85 °F
Operating Relative Humidity
%RH
95
Operating Altitude
Ft
2000 Ft
Operating Altitude
Ft
6500 Ft
Housing/Enclosure material
Thermoplastic
Flammability rating
V0
Mounting
Din Rail
IP Environmental rating
IP20
NEMA Environmental rating
NEMA 1
Installation Location
Indoor
Spare part
Module
Product Dimension
mm
99 mm
Product Dimension
mm
67 mm
Product Dimension
mm
36 mm
Product Dimension
In
3.89 In
Product Dimension
In
2.64 In
Product Dimension
In
1.42 In
Individual Pack
Yes
Storage Temperature
°C
-40 °C
Storage Temperature
°C
85 °C
Storage Temperature
°F
-40 °F
Storage Temperature
°F
85 °F
Storage Relative Humidity
%RH
95 %RH
Waranty
10 Years
×
