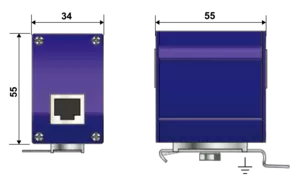

Indoor Cat. 6A 10Gb/s rated POE Surge Protective Device & Mounting Hardware Kit

MJ8-POE-C6A
Part Number: 581541
MJ8-POE-C6A
Availability:
$102.00 (excl. tax)

Available within 3 weeks

  • POE++ compatible Surge Protector
  • Cat. 6A compatible
  • Shielded RJ45 connectors
  • 16 kA maximum surge discharge capability
  • Max Transmission up to 10Gbps
  • Max Bandwidth up to 500 MHz
  • UL497B


Select another reference:

Protection modes (network)
CM / DM (common mode / differential mode)
Protection modes (POE)
CM / DM (common mode / differential mode)
Transmission standard
IEEE 802.3bt
Max. DC operating voltage
Uc 8 Vdc
Max. operating voltage (POE)
Uc 60 Vdc
Max. load current
@25°C
IL 2 A
Max. POE power (4PPOE)
90 W
Max. discharge current
max. withstand @ 8/20 µs, X-C (Line/Earth)
Imax 2 kA
Protection Level
C3 category (10/1000μs), 300 applications@10 A, X-X (Line/Line)
Up 70 V
Protection level
C3 category (10/1000μs), 300 applications@10 A, X-C (Line/Earth)
Up 500 V
Protection Level
C3 Category (10/1000µs), 300 applications @ 10A, (Pair-Pair, POE)
Up 80 V
Impulse current
D1 category (10/350μs), 2 applications, X-C (Line/Earth)
Iimp 400 A
Line resistance (± 10%)
0 Ohm
Capacitance
@1MHz, X-C (Line/Earth)
C < 5 pF
NOMINAL DC LINE VOLTAGE
Vdc 48
MAX. DC LINE VOLTAGE
Vdc 60
WIRES
8W+Shield+Ground
LINE CURRENT MAX
(A) 1.6
POWER RATING
(W) 100
AMBIENT MIN
(C) -40
AMBIENT MAX
(C) +85
PROTECTION LEVEL
(V) 70
IMAX
8/20µs
(kA) 16
MAX. DATA RATE
Gbps 10
MAX. FREQUENCY
Mhz 500
Connection to Network
RJ45 shielded connectors Female input/output
Cable glands
N/A
Weight
0.12 kg / 0.26 lbs
TECHNOLOGY
SAD-GDT
NETWORK CONFIGURATION
Single POE Line
CONNECTOR TYPE
Shielded RJ45
PIN OUT
[1-2][3-6][4-5][7-8]
NEMA RATING (IP RATING)
NEMA 2 (IP20)
DIMENSIONS
See diagram
Certification
UL 497B
UL STANDARD
UL497B
UL CATEGORY
QVGQ
UL FILE NUMBER
E184939
STANDARDS
NOM-003-SCFI-2014, NOM-001-SCFI-1993
ENVIRONMENTAL STANDARDS
ROHS
