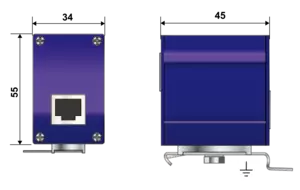

Indoor Cat. 6A 10Gb/s rated POE Surge Protective Device & Mounting Hardware Kit

MJ8-POE-A

Part Number 581519

Select another reference:

Electrical Properties Mechanical Properties Norms Schemas

Network		1Gb/s on Cat5E S/FTP cabling
Protection modes (network)		CM / DM (common mode / differential mode)
Protection modes (POE)		CM (Common Mode)
Transmission standard		IEEE 802.3bt
Max. DC operating voltage	Uc	60 Vdc
Max. operating voltage (POE)	Uc	60 Vdc
Max. frequency, in the channel	f max.	100 MHz
Max. data rate		1 Gbps
Max. load current @25°C	IL	2 A
Max. POE power (4PPOE)		90 W
Max. discharge current max. withstand @ 8/20 µs, X-C (Line/Earth)	Imax	2 kA
Protection Level C3 (10/1000μs), 300 applications@10 A, X-X (Line/Line)	Up	80 V
Protection level C3 (10/1000μs), 300 applications@10 A, X-C (Line/Earth)	Up	700 V
Protection Level C3 (10/1000µs), 300 applications @ 10A, (Pair-Pair, POE)	Up	700 V
Impulse current D1 (10/350µs), 2 applications, 8X-C (1&2+3&6+4&5+7&8 - Earth)	Iimp Total	500 A
Nominal discharge current C1 (8/20μs), 300 applications X-X (Line/Line)	In	100V / 50A
Nominal discharge current C2 (8/20μs), 10 applications X-C (Line/Earth)	In	4 kV / 2 kA
Line resistance (± 10%)		~ 0 ohms
Capacitance @1MHz, X-C (Line/Earth)	C	< 5 pF
NOMINAL DC LINE VOLTAGE	Vdc	48
MAX. DC LINE VOLTAGE	Vdc	60
WIRES		8W+Shield+Ground
LINE CURRENT MAX	(A)	1.6
POWER RATING	(W)	100
AMBIENT MIN	(C)	-40
AMBIENT MAX	(C)	+85
PROTECTION LEVEL	(V)	70
IMAX 8/20µs	(kA)	16
MAX. DATA RATE	Gbps	1
MAX. FREQUENCY	Mhz	100

Technology		GDT+TVS diode
Connection to Network		RJ45 shielded connectors Female input/output
Cable glands		N/A
Format		Metallic box with connectors input/output
Accessory(s) provided		Screw, washer, cable shoe, earthing plate, DIN rail adapter
Failsafe mode		Transmission cut-off - Fault mode 2 (short-circuit)
Pinout		(1-2)(3-6)(4-5)(7-8)
Weight		0.12 kg / 0.26 lbs
TECHNOLOGY		SAD-GDT
NETWORK CONFIGURATION		Single POE Line
CONNECTOR TYPE		Shielded RJ45
PIN OUT		[1-2][3-6][4-5][7-8]
NEMA RATING (IP RATING)		NEMA 2 (IP20)
DIMENSIONS		See diagram
