AC POWER
PANELMOUNT AC
M50F-347Y-A
PANELMOUNT AC
M50F-347Y-A
Part Number:
89750601
Hybrid MOV-GSG Technology
UL1449 Type 2 LISTED
50kA Surge Current Rating per mode
Extended life with no leakage current
Visual LED fault indicator and audible alarm
NEMA 6 (exceeds NEMA 4X or 4)
UL1283 Filter
10-Year warranty
Datasheet
Tender specifications
Contact Us
Select another reference:
M50F-120S-A
M50F-120T-A
M50F-120Y-A
M50F-230S-A
M50F-240D-A
M50F-240T-A
M50F-277Y-A
M50F-347Y-A
M50F-480D-A
M50F-600D-A
Electrical Properties
Mechanical Properties
Norms
Install
Misc
Schemas
Let through Voltage
V N-G
1800 V
POWER SPD TYPE
UL1449 TYPE 2 LISTED
VOLTS
(V)
347/600
AC/DC/DC PV/RF
AC
PHASE
(PH)
3Y
AMPS
(A)
n/a
AMBIENT MIN
(C)
-40
AMBIENT MAX
(C)
+80
MODES
L-L, L-N, L-G, N-G
VPR
(V)
2500/1200/1500/1200
MCOV
(V)
560/320/320/280
IN
(kA)
20
SCCR
(kA)
150
IMAX
(kA)
50
TECHNOLOGY
MOV-GSG
NETWORK CONFIGURATION
3PH, 4W+G, Wye
CONNECTION METHOD
36" #12 AWG LEADS
MOUNTING
SIDE MOUNT, THREADED M22 (1/4" NPT ADAPTER)
MATERIAL
Aluminum cast
NEMA RATING (IP RATING)
NEMA 6P (IP67)
FAIL-SAFE BEHAVIOR
Yes, no upstream over current protection required
REAL-TIME DIAGNOSTICS
LED and audible alarm

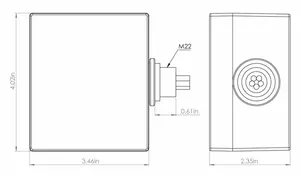

DIMENSIONS
See diagram (mm)
WEIGHT
2.4 lbs
UL STANDARD
UL1449 5th Edition
UL CATEGORY
VZCA, VZCA7
UL FILE NUMBER
E326289
STANDARDS
NOM-003-SCFI-2014, NOM-001-SCFI-1993
ENVIRONMENTAL STANDARDS
ROHS
Operating Temperature
°C
-40 °C
Operating Temperature
°C
85 °C
Operating Temperature
°F
-40 °F
Operating Temperature
°F
85 °F
Operating Relative Humidity
%RH
Can be submerged
Operating Altitude
Ft
2000 Ft
Operating Altitude
Ft
6500 Ft
Housing/Enclosure material
Aluminum cast
Mounting
Side mount
IP Environmental rating
IP66
NEMA Environmental rating
NEMA 6
Installation Location
Indoor / outdoor
Accessories
brackets
Product Dimension
mm
102 mm
Product Dimension
mm
62 mm
Product Dimension
mm
88 mm
Product Dimension
In
4.016 In
Product Dimension
In
2.441 In
Product Dimension
In
3.465 In
Individual Pack
Yes
Storage Temperature
°C
-40 °C
Storage Temperature
°C
85 °C
Storage Temperature
°F
-40 °F
Storage Temperature
°F
85 °F
Waranty
10 Years
×
