PANELMOUNT AC

M50F-240T-B
Part Number 89750412
M50F-240T-B
Availability:
$217.00 (excl. tax)
Add to cart

Available within 3 weeks

  • Hybrid MOV-GSG Technology
  • UL1449 Type 1 LISTED
  • 50kA Surge Current Rating per mode
  • Extended life with no leakage current
  • Visual LED fault indicator and audible alarm
  • NEMA 6 (exceeds NEMA 4X or 4)
  • Optional Type 2 LISTED with UL1283 Filter
  • 10-Year warranty
Contact Us
Let through Voltage
Ures at 20kA
 V N-G 1500 V
POWER SPD TYPE
 UL1449 TYPE 2 LISTED
VOLTS
 (V) 480/240
AC/DC/DC PV/RF
 AC
PHASE
 (PH) 1S
AMPS
 (A) N/A
AMBIENT MIN
 (C) -35
AMBIENT MAX
 (C) +80
MODES
 L-L, L-N, L-G, N-G
VPR
 (V) 2500/1200/1500/1200
MCOV
 (V) 480/280//280/240
IN
15 impulses 8/20µs
 (kA) 20
SCCR
 (kA) 150
IMAX
8/20µs
 (kA) 50

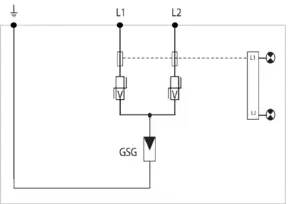

TECHNOLOGY
 MOV-GSG
NETWORK CONFIGURATION
 1PH, 3W+G, Split Phase
CONNECTION METHOD
 36" #12 AWG LEADS
MOUNTING
 SIDE MOUNT, THREADED M22 (1/4" NPT ADAPTER)
MATERIAL
 Aluminum cast
NEMA RATING (IP RATING)
 6
FAIL-SAFE BEHAVIOR
 Yes, no upstream over current protection required
REAL-TIME DIAGNOSTICS
 LED and audible alarm
DIMENSIONS
 See diagram
WEIGHT
 2.5 lbs.
UL STANDARD
 UL1449 5th Edition
UL CATEGORY
 VZCA, VZCA7
UL FILE NUMBER
 E326289
STANDARDS
 NOM-003-SCFI-2014, NOM-001-SCFI-1993
ENVIRONMENTAL STANDARDS
 ROHS
Operating Temperature
Min
 °C -40 °C
Operating Temperature
Max
 °C 85 °C
Operating Temperature
Min
 °F -40 °F
Operating Temperature
Max
 °F 85 °F
Operating Relative Humidity
Max
 %RH Can be submerged
Operating Altitude
Min
 Ft 2000 Ft
Operating Altitude
Max
 Ft 6500 Ft
Housing/Enclosure material
 Aluminum cast
Mounting
 Side mount
IP Environmental rating
IP
 IP66
NEMA Environmental rating
NEMA
 NEMA 6
Installation Location
 Indoor / outdoor
Accessories
 brackets
Product Dimension
L
 mm 102 mm
Product Dimension
H
 mm 62 mm
Product Dimension
W
 mm 88 mm
Product Dimension
L
 In 4.016 In
Product Dimension
H
 In 2.441 In
Product Dimension
W
 In 3.465 In
Individual Pack
 Yes
Storage Temperature
Min
 °C -40 °C
Storage Temperature
Max
 °C 85 °C
Storage Temperature
Min
 °F -40 °F
Storage Temperature
Max
 °F 85 °F
Waranty
 10 Years
