100kA Rated SPD - Integrated Surge Tolerant Disconnect Switch

iMDS100-480D
Part Number: 890675
iMDS100-480D
Availability:
$2,090.00 (excl. tax)
Add to cart

Available within 3 weeks

  • Multi-MOV Technology
  • 100kA Max Surge Current Rating per Phase
  • Visual and Audible Protection Status Indicators
  • Remote Contacts
  • Modular/Serviceable Design
  • Surge Tolerant External Disconnect Switch
  • 10-Year warranty
Contact Us
Select another reference:
VOLTS
 (V) 480
AC/DC/DC PV/RF
 AC
PHASE
 (PH) 3D
AMPS
 (A) N/A
AMBIENT MIN
 (C) -40
AMBIENT MAX
 (C) +85
MODES
 L-L, L-G
VPR
 (V) 1500/-/1500/-
MCOV
 (V) 550/-/550/-
IN
15 impulses 8/20µs
 (kA) 20
SCCR
 (kA) 200
IMAX
8/20µs
 (kA) 100
RELATIVE HUMIDITY
 (%) 95%
TECHNOLOGY
 Multi-MOV
NETWORK CONFIGURATION
 3PH, 3W+G, Delta
CONNECTION METHOD
 Screw Terminal (4-14AWG)
DISCONNECTION
 External Surge Tolerant Switch
MOUNTING
 FLANGE MOUNT
MATERIAL
 Steel
NEMA RATING (IP RATING)
 NEMA 4
FAIL-SAFE BEHAVIOR
 Yes, no upstream over current protection required
REAL-TIME DIAGNOSTICS
 % of protection present LED, audible alarm, and remote contacts

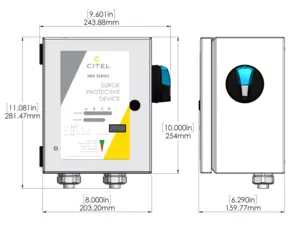

DIMENSIONS
 See diagram
UL STANDARD
 UL508A
UL CATEGORY
 NITW
UL FILE NUMBER
 E532119
STANDARDS
 NOM-003-SCFI-2014, NOM-001-SCFI-1993
ENVIRONMENTAL STANDARDS
 ROHS
