UL TYPE 4CA - Imax 50kA - In 20kA - Modular
Part Number: 821130224555
DAC54VGUS-480DCT
- VG Technology
- UL1449 Type 4CA
- 50kA Surge Current Rating
- Visual fault indicator and remote contacts
- 10-Year warranty
Datasheet|
POWER SPD TYPE
|
UL1449 5th Ed. TYPE 4CA |
|
|
VOLTS
|
(V) | 480/240 |
|
AC/DC/DC PV/RF
|
AC |
|
|
PHASE
|
(PH) | 3H |
|
AMPS
|
(A) | N/A |
|
AMBIENT MIN
|
(C) | -40 |
|
AMBIENT MAX
|
(C) | +85 |
|
MODES
|
L-L, L-N, L-G, N-G, H-L, H-N, H-G |
|
|
MLV
|
(V) | 6720/3360/3360/3310/8440/4220/4220 |
|
MCOV
|
(V) | 610/150/305/305/815/510/510 |
|
IN
15 impulses 8/20µs
|
(kA) | 20 |
|
SCCR
|
(kA) | n/a |
|
IMAX
8/20µs
|
(kA) | 50 |
|
TECHNOLOGY
|
MOV-GSG |
|
|
NETWORK CONFIGURATION
|
4 pole, 4W+G, Hi-Leg Delta |
|
|
CONNECTION METHOD
|
Screw Terminal (4-13AWG) |
|
|
MOUNTING
|
Din Rail |
|
|
MATERIAL
|
Thermoplastic UL94-V0 |
|
|
NEMA RATING (IP RATING)
|
NEMA 2 (IP20) |
|
|
FAIL-SAFE BEHAVIOR
|
Disconnection via fuse-link |
|
|
REAL-TIME DIAGNOSTICS
|
Visual indicator and remote contacts |
|
|
DIMENSIONS
|
See diagram |
|
|
WEIGHT
|
0.79 lbs |
|
Environmental standards
|
EU RoHS |
|
|

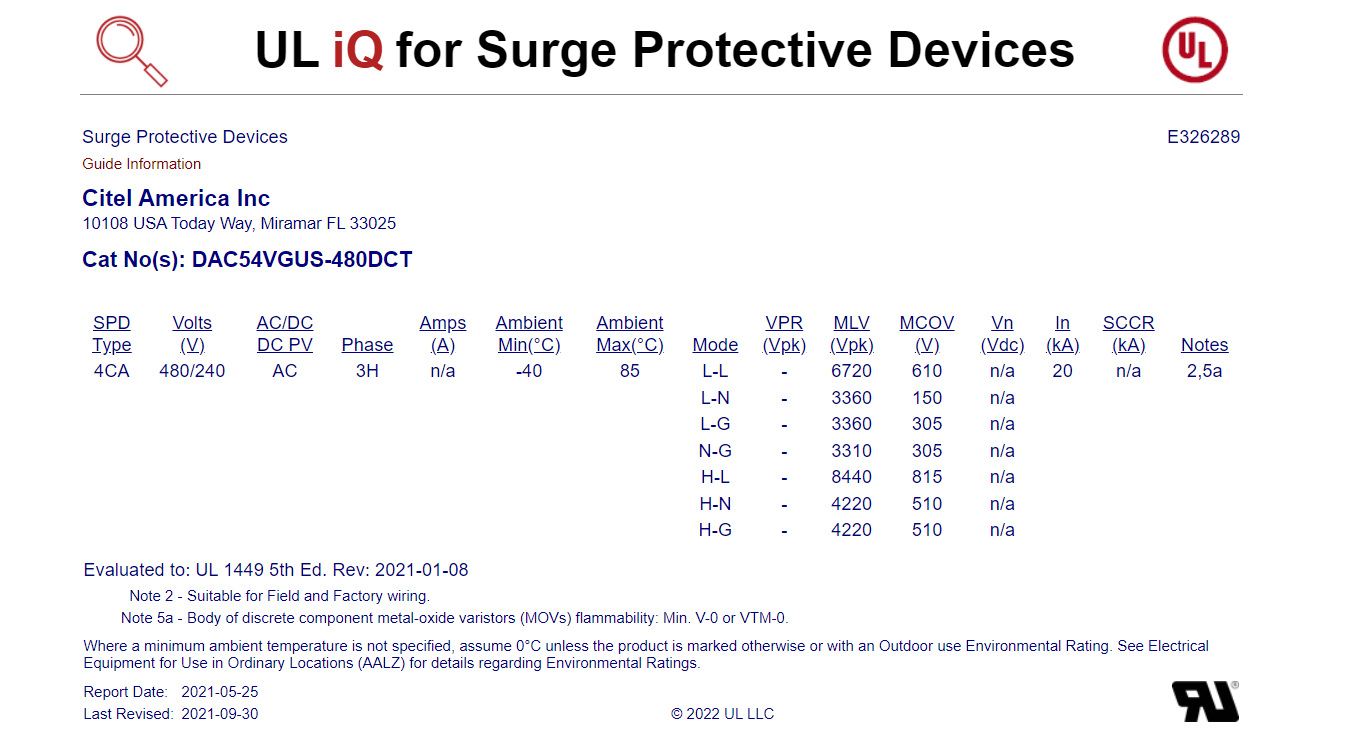

UL STANDARD
|
UL1449 5th Edition |
|
|
UL CATEGORY
|
VZCA2 |
|
|
UL FILE NUMBER
|
E326289 |
|
|
STANDARDS
|
NOM-003-SCFI-2014, NOM-001-SCFI-1993 |
