UL TYPE 4CA - Imax 50kA - In 20kA - Modular

DAC54VGUS-480D
Part Number: 821130224554
DAC54VGUS-480D
Availability:
$384.00 (excl. tax)
Add to cart

Call for leadtime/delivery

  • VG Technology
  • UL1449 Type 4CA
  • 50kA Surge Current Rating
  • Visual fault indicator and remote contacts
  • 10-Year warranty
Contact Us
POWER SPD TYPE

UL1449 5th Ed. TYPE 4CA
VOLTS
 (V)

480
AC/DC/DC PV/RF

AC
PHASE
 (PH)

3D
AMPS
 (A)

N/A
AMBIENT MIN
 (C)

-40
AMBIENT MAX
 (C)

+85
MODES

L-L, L-G
MLV
 (V)

4220/4220
MCOV
 (V)

510/510
IN
15 impulses 8/20µs
 (kA)

20
SCCR
 (kA)

n/a
IMAX
8/20µs
 (kA)

50
TECHNOLOGY

MOV-GSG
NETWORK CONFIGURATION

4 pole, 3W+G, Delta
CONNECTION METHOD

Screw Terminal (4-13AWG)
MOUNTING

Din Rail
MATERIAL

Thermoplastic UL94-V0
NEMA RATING (IP RATING)

NEMA 2 (IP20)
FAIL-SAFE BEHAVIOR

Disconnection via fuse-link
REAL-TIME DIAGNOSTICS

Visual indicator and remote contacts
DIMENSIONS

See diagram
WEIGHT

0.75 lbs
Environmental standards

EU RoHS
UL STANDARD

UL1449 5th Edition
UL CATEGORY

VZCA2

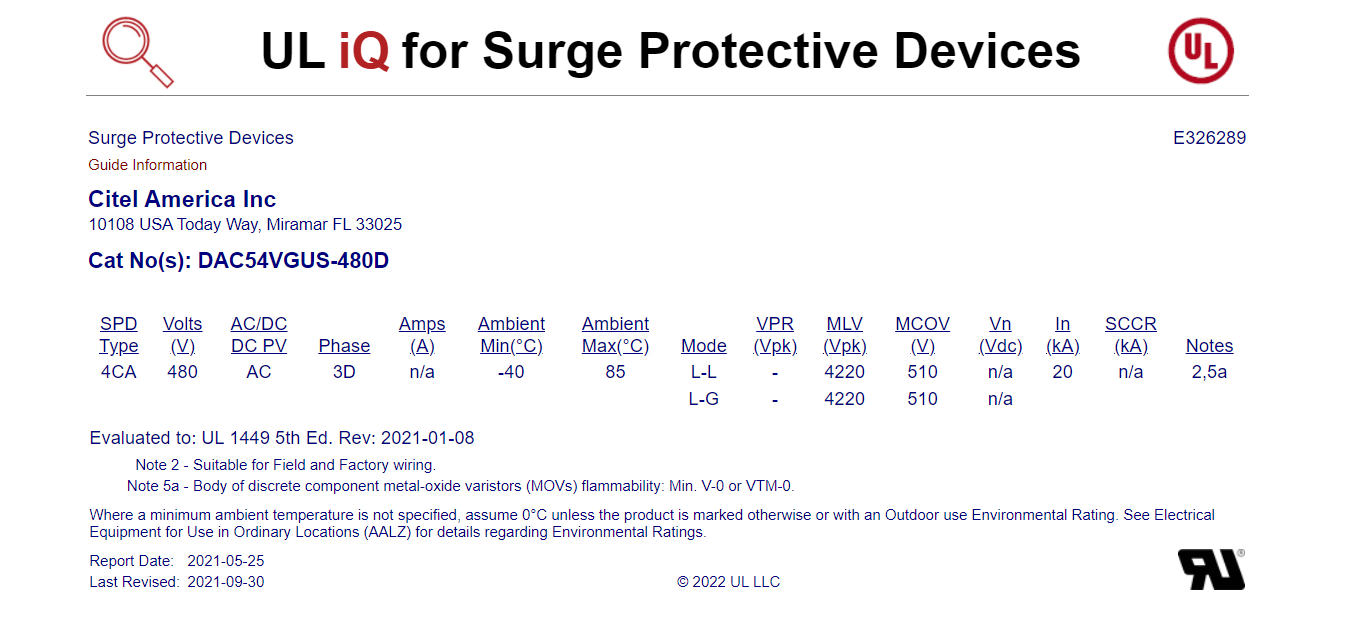

UL FILE NUMBER

E326289
STANDARDS

NOM-003-SCFI-2014, NOM-001-SCFI-1993
