UL TYPE 4CA - Imax 50kA - In 20kA - Modular

DAC54VGUS-240Y
Part Number: 821130224552
DAC54VGUS-240Y
Availability:
$384.00 (excl. tax)
Add to cart

Call for leadtime/delivery

  • VG Technology
  • UL1449 Type 4CA
  • 50kA Surge Current Rating
  • Visual fault indicator and remote contacts
  • 10-Year warranty
Contact Us
Network

230/400 V 3-phase+N
Max. AC operating voltage
Uc

275 Vac
Max. discharge current
max. withstand @ 8/20 µs by pole
 Imax

50 kA
Total Maximum discharge current
max. total withstand @ 8/20 µs
Imax Total

200 kA
Connection mode(s)

L/PE and N/PE
Protection level N/PE
@ In (8/20µs)
 Up N/PE

1.5 kV
POWER SPD TYPE

UL1449 5th Ed. TYPE 4CA
VOLTS
 (V)

120/208/240
AC/DC/DC PV/RF

AC
PHASE
 (PH)

3Y
AMPS
 (A)

N/A
AMBIENT MIN
 (C)

-40
AMBIENT MAX
 (C)

+85
MODES

L-L, L-N, L-G, N-G
MLV
 (V)

6580/6580/3290/3260
MCOV
 (V)

610/305/305/305
IN
15 impulses 8/20µs
 (kA)

20
SCCR
 (kA)

n/a
IMAX
8/20µs
 (kA)

50
Network type

AC
Technology

VG Technology (MOV+GSG)
Connection to Network

By screw terminals: 2.5-25mm² (35mm² rigid)
Format

Plug-in modular box
Mounting

Symmetrical rail 35 mm (EN 60715)
Operating temperature
 Tu

-40/+85°C
Protection rating

IP20
Failsafe mode

Disconnection from AC network
TECHNOLOGY

MOV-GSG
NETWORK CONFIGURATION

4 pole, 4W+G, 3PH Wye
CONNECTION METHOD

Screw Terminal (4-13AWG)
MOUNTING

Din Rail
MATERIAL

Thermoplastic UL94-V0
NEMA RATING (IP RATING)

NEMA 2 (IP20)
FAIL-SAFE BEHAVIOR

Disconnection via fuse-link
REAL-TIME DIAGNOSTICS

Visual indicator and remote contacts
DIMENSIONS

See diagram
WEIGHT

0.79 lbs

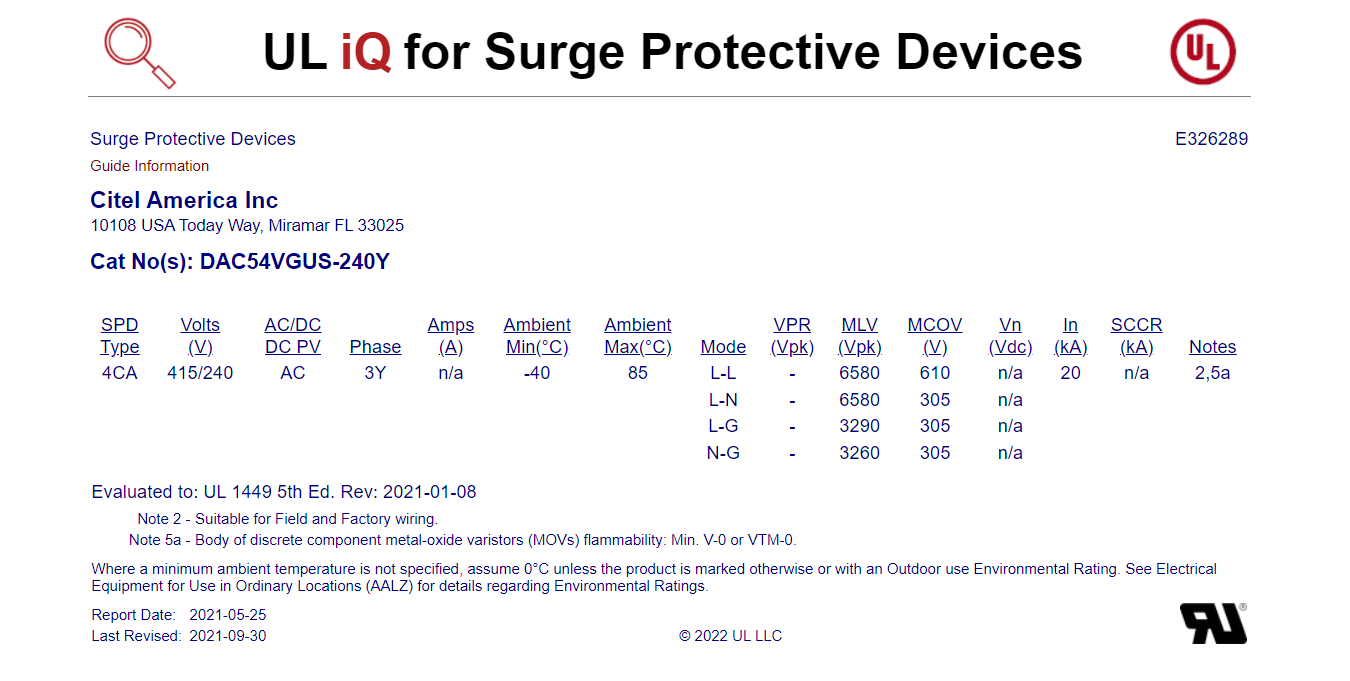

Certification

UL Recognized
Environmental standards

EU RoHS
UL STANDARD

UL1449 5th Edition
UL CATEGORY

VZCA2
UL FILE NUMBER

E326289
STANDARDS

NOM-003-SCFI-2014, NOM-001-SCFI-1993
