AC POWER
DIN RAIL AC
DAC53VGUS-120T
UL TYPE 4CA - Imax 50kA - In 20kA - Modular
DAC53VGUS-120T
Part Number:
821130123551
VG Technology
UL1449 Type 4CA
50kA Surge Current Rating
Visual fault indicator and remote contacts
10-Year warranty
Datasheet

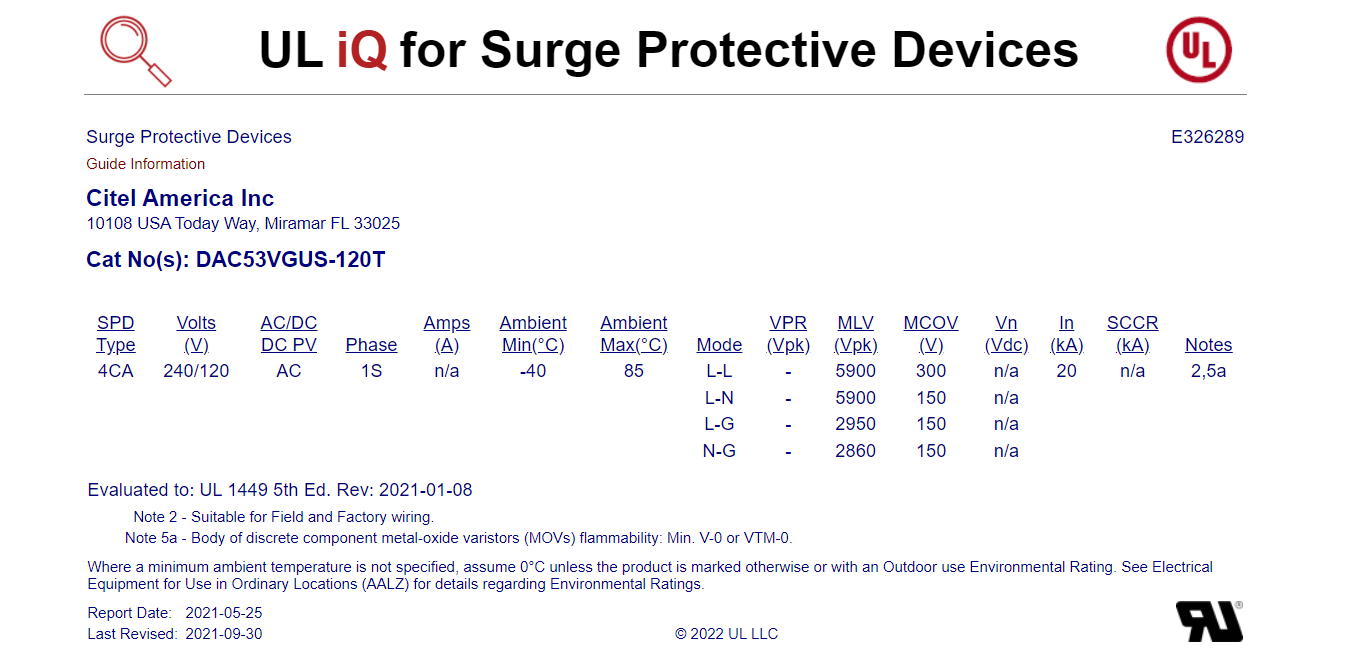

ULCertificate_DAC53VGUS-120T.pdf
Installation Sheet
Tender specifications
Contact Us
Select another reference:
DAC51VGUS-120
DAC51VGUS-277
DAC52VGUS-120S
DAC52VGUS-120T/NN
DAC52VGUS-230S
DAC52VGUS-240T/NN
DAC52VGUS-277S
DAC53VGUS-120T
DAC53VGUS-120Y/NN
DAC53VGUS-277Y/NN
DAC54VGUS-120Y
DAC54VGUS-230Y
DAC54VGUS-240Y
DAC54VGUS-277Y
DAC54VGUS-480D
DAC54VGUS-480DCT
Electrical Properties
Mechanical Properties
Norms
Schemas
POWER SPD TYPE
UL1449 TYPE 4CA
VOLTS
(V)
240/120
AC/DC/DC PV/RF
AC
PHASE
(PH)
1S
AMPS
(A)
n/a
AMBIENT MIN
(C)
-40
AMBIENT MAX
(C)
+85
MODES
L-L, L-N, L-G, N-G
MLV
(V)
5900/5900/2950/2860
MCOV
(V)
300/150/150/150
IN
(kA)
20
SCCR
(kA)
n/a
IMAX
(kA)
50
TECHNOLOGY
MOV-GSG
NETWORK CONFIGURATION
3 pole, 3W+G, Split Phase
CONNECTION METHOD
Screw Terminal (4-13AWG)
MOUNTING
DIN RAIL
MATERIAL
Thermoplastic UL94-V0
NEMA RATING (IP RATING)
NEMA 2 (IP20)
FAIL-SAFE BEHAVIOR
Disconnection via fuse-link
REAL-TIME DIAGNOSTICS
Visual indicator and remote contacts
DIMENSIONS
See diagram (mm)
WEIGHT
0.59 lbs
UL STANDARD
UL1449 5th Edition
UL CATEGORY
VZCA2
UL FILE NUMBER
E326289
STANDARDS
NOM-003-SCFI-2014, NOM-001-SCFI-1993
ENVIRONMENTAL STANDARDS
ROHS
×
