UL TYPE 4CA - Imax 50kA - In 20kA - Modular

DAC52VGUS-277S
Part Number 821130222551
DAC52VGUS-277S
Availability:
$192.00 (excl. tax)
Add to cart

Available within 3 weeks

  • VG Technology
  • UL1449 Type 4CA
  • 50kA Surge Current Rating
  • Visual fault indicator and remote contacts
  • 10-Year warranty
Contact Us
Network

230 V single-phase
Total Maximum discharge current
max. total withstand @ 8/20 µs
Imax Total

100 kA
Protection level N/PE
@ In (8/20µs)
 Up N/PE

1.5 kV
POWER SPD TYPE

UL1449 5th Ed. TYPE 4CA
VOLTS
 (V)

277
AC/DC/DC PV/RF

AC
PHASE
 (PH)

1
AMPS
 (A)

N/A
AMBIENT MIN
 (C)

-40
AMBIENT MAX
 (C)

+85
MODES

L-L, L-G, L-N, N-G
VPR
 (V)

1000/1800/900
MLV
 (V)

6720/3360/3360
MCOV
 (V)

305/305/305
IN
15 impulses 8/20µs
 (kA)

20
SCCR
 (kA)

n/a
IMAX
8/20µs
 (kA)

50
Iimp
10/350µs
 (kA)

4
Network type

AC
Technology

VG Technology (MOV+GSG)
Connection to Network

By screw terminals: 2.5-25mm² (35mm² rigid)
Format

Plug-in modular box
Failsafe mode

Disconnection from AC network
TECHNOLOGY

MOV-GSG
NETWORK CONFIGURATION

2 Pole, 2W+G,1PH
CONNECTION METHOD

Screw Terminal (4-13AWG)
MOUNTING

Din Rail
MATERIAL

Thermoplastic UL94-V0
NEMA RATING (IP RATING)

NEMA 2 (IP20)
FAIL-SAFE BEHAVIOR

Disconnection via fuse-link
REAL-TIME DIAGNOSTICS

Visual indicator and remote contacts
DIMENSIONS

See diagram
WEIGHT

0.44 lbs
SPARE PART

MDAC50VG-275

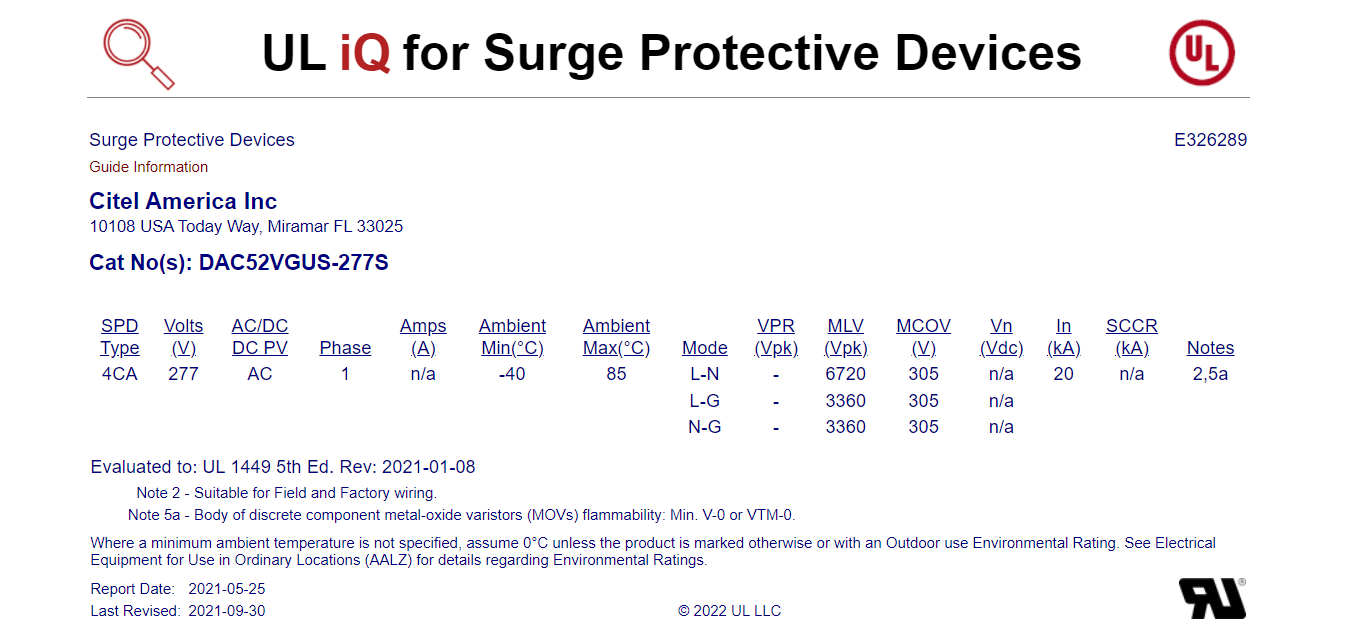

Certification

UL Recognized
UL STANDARD

UL1449 5th Edition
UL CATEGORY

VZCA2
UL FILE NUMBER

E326289
STANDARDS

NOM-003-SCFI-2014, NOM-001-SCFI-1993
ENVIRONMENTAL STANDARDS

ROHS
