AC POWER
DIN RAIL AC
DAC52VGUS-240T/NN
UL TYPE 4CA - Imax 50kA - In 20kA - Modular
DAC52VGUS-240T/NN
Part Number
821130222553
Availability:
$192.00 (excl. tax)
Add to cart
Shipping is only available to the USA.
OK
Available within 3 weeks
VG Technology
UL1449 Type 4CA
50kA Surge Current Rating
Visual fault indicator and remote contacts
10-Year warranty
Datasheet
ULCertificate_DAC52VGUS-240T:NN.pdf
Installation Sheet
Tender specifications
Contact Us
Select another reference:
DAC51VGUS-120
DAC51VGUS-277
DAC52VGUS-120S
DAC52VGUS-120T/NN
DAC52VGUS-230S
DAC52VGUS-240T/NN
DAC52VGUS-277S
DAC53VGUS-120T
DAC53VGUS-120Y/NN
DAC53VGUS-277Y/NN
DAC54VGUS-120Y
DAC54VGUS-230Y
DAC54VGUS-240Y
DAC54VGUS-277Y
DAC54VGUS-480D
DAC54VGUS-480DCT
Electrical Properties
Mechanical Properties
Norms
Schemas
Network
230 V single-phase
Total Maximum discharge current
max. total withstand @ 8/20 µs
Imax Total
100 kA
POWER SPD TYPE
UL1449 5th Ed. TYPE 4CA
VOLTS
(V)
120/208/240
AC/DC/DC PV/RF
AC
PHASE
(PH)
3Y
AMPS
(A)
N/A
AMBIENT MIN
(C)
-40
AMBIENT MAX
(C)
+85
MODES
L-L, L-N
VPR
(V)
1000/1800/900
MLV
(V)
6580/3290
MCOV
(V)
610/305
IN
15 impulses 8/20µs
(kA)
20
SCCR
(kA)
n/a
IMAX
8/20µs
(kA)
50
Iimp
10/350µs
(kA)
4
Technology
VG Technology (MOV+GSG)
Connection to Network
By screw terminals: 2.5-25mm² (35mm² rigid)
Format
Plug-in modular box
Failsafe mode
Disconnection from AC network
TECHNOLOGY
MOV-GSG
NETWORK CONFIGURATION
2 Pole, 2W+G, 3PH Wye
CONNECTION METHOD
Screw Terminal (4-13AWG)
MOUNTING
Din Rail
MATERIAL
Thermoplastic UL94-V0
NEMA RATING (IP RATING)
NEMA 2 (IP20)
FAIL-SAFE BEHAVIOR
Disconnection via fuse-link
REAL-TIME DIAGNOSTICS
Visual indicator and remote contacts
DIMENSIONS
See diagram
WEIGHT
0.44 lbs
SPARE PART
MDAC50VG-275

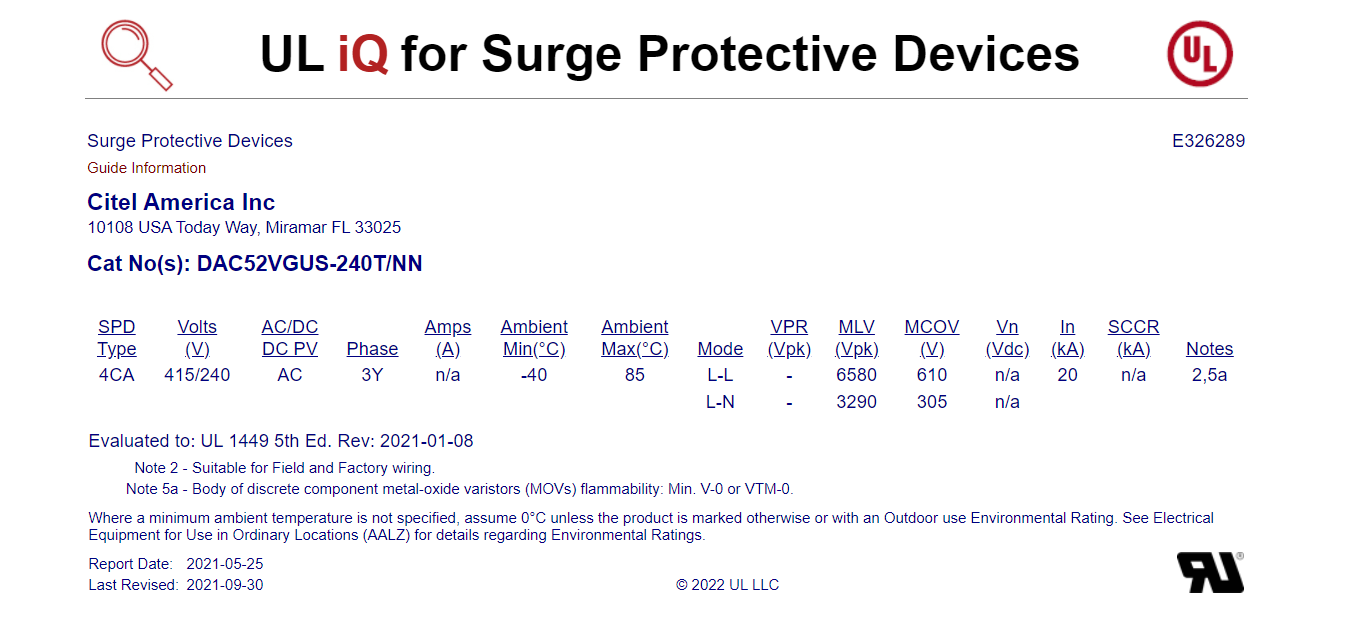

Certification
UL Recognized
UL STANDARD
UL1449 5th Edition
UL CATEGORY
VZCA2
UL FILE NUMBER
E326289
STANDARDS
NOM-003-SCFI-2014, NOM-001-SCFI-1993
ENVIRONMENTAL STANDARDS
ROHS
×
Certification:
UL Recognized
Technology:
VG Technology (MOV+GSG)
Network:
230 V single-phase
Total Maximum discharge current :
100 kA
