UL TYPE 4CA - Imax 50kA - In 20kA - Modular
DAC52VGUS-230S
Part Number 821130222552
Available within 3 weeks
- VG Technology
- UL1449 Type 4CA
- 50kA Surge Current Rating
- Visual fault indicator and remote contacts
- 10-Year warranty
Datasheet
Select another reference:
|
Network
|
230 V single-phase | |
|
Total Maximum discharge current
max. total withstand @ 8/20 µs
|
Imax Total | 100 kA |
|
Protection level N/PE
@ In (8/20µs)
|
Up N/PE | 1.5 kV |
|
POWER SPD TYPE
|
UL1449 5th Ed. TYPE 4CA | |
|
VOLTS
|
(V) | 230 |
|
AC/DC/DC PV/RF
|
AC | |
|
PHASE
|
(PH) | 1 |
|
AMPS
|
(A) | N/A |
|
AMBIENT MIN
|
(C) | -40 |
|
AMBIENT MAX
|
(C) | +85 |
|
MODES
|
L-L, L-G, L-N, N-G | |
|
VPR
|
(V) | 1000/1800/900 |
|
MLV
|
(V) | 6580/3290/3240 |
|
MCOV
|
(V) | 150/150/150 |
|
IN
15 impulses 8/20µs
|
(kA) | 20 |
|
SCCR
|
(kA) | n/a |
|
IMAX
8/20µs
|
(kA) | 50 |
|
Iimp
10/350µs
|
(kA) | 4 |
|
Technology
|
VG Technology (MOV+GSG) | |
|
Connection to Network
|
By screw terminals: 2.5-25mm² (35mm² rigid) | |
|
Format
|
Plug-in modular box | |
|
Failsafe mode
|
Disconnection from AC network | |
|
TECHNOLOGY
|
MOV-GSG | |
|
NETWORK CONFIGURATION
|
2 Pole, 2W+G,1PH | |
|
CONNECTION METHOD
|
Screw Terminal (4-13AWG) | |
|
MOUNTING
|
Din Rail | |
|
MATERIAL
|
Thermoplastic UL94-V0 | |
|
NEMA RATING (IP RATING)
|
NEMA 2 (IP20) | |
|
FAIL-SAFE BEHAVIOR
|
Disconnection via fuse-link | |
|
REAL-TIME DIAGNOSTICS
|
Visual indicator and remote contacts | |
|
DIMENSIONS
|
See diagram | |
|
WEIGHT
|
0.44 lbs | |
|
SPARE PART
|
MDAC50VG-275 |
|

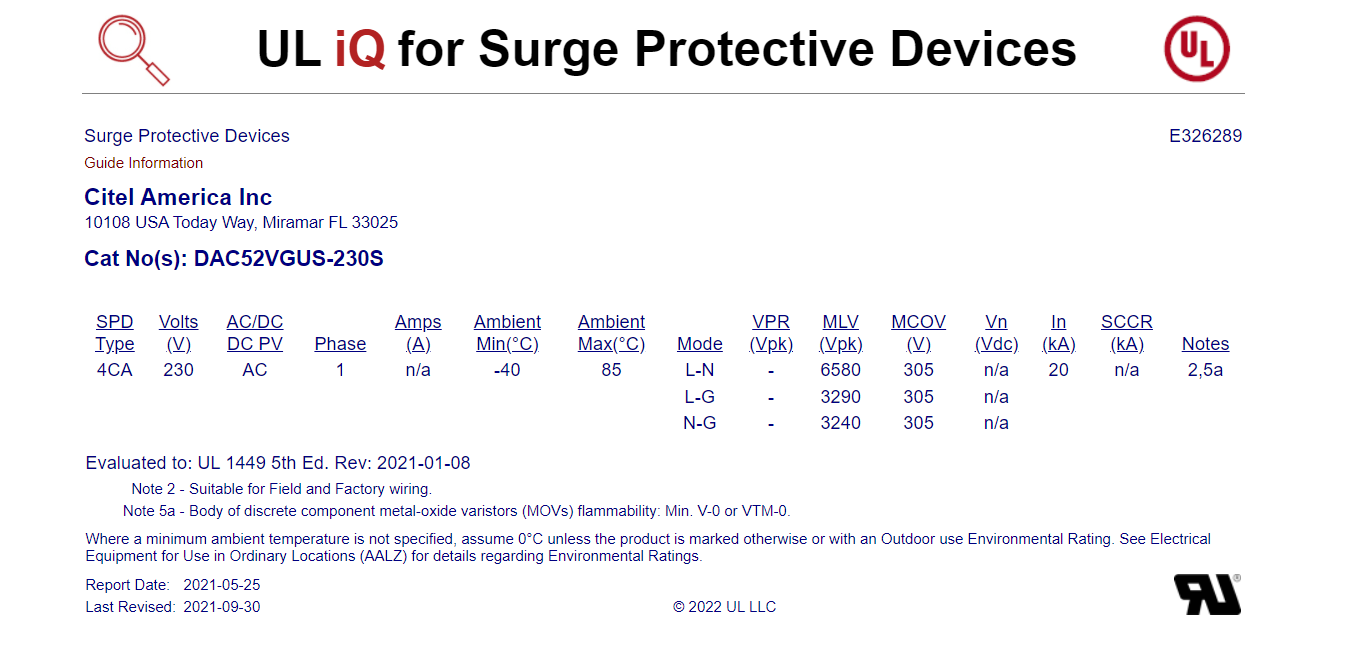

Certification
|
UL Recognized | |
|
UL STANDARD
|
UL1449 5th Edition | |
|
UL CATEGORY
|
VZCA2 | |
|
UL FILE NUMBER
|
E326289 | |
|
STANDARDS
|
NOM-003-SCFI-2014, NOM-001-SCFI-1993 | |
|
ENVIRONMENTAL STANDARDS
|
ROHS |
