UL TYPE 4CA - Imax 50kA - In 20kA - Modular

DAC51VGUS-120
Part Number: 82113012155
DAC51VGUS-120
Availability:
$96.00 (excl. tax)
Add to cart

Call for leadtime/delivery

  • VG Technology
  • UL1449 Type 4CA
  • 50kA Surge Current Rating
  • Visual fault indicator and remote contacts
  • 10-Year warranty
Contact Us
Max. AC operating voltage
Uc

150 Vac
Max. discharge current
max. withstand @ 8/20 µs by pole
 Imax

50 kA
Residual voltage at 5 kA
@ 5 kA (8/20µs)
 Up-5kA

0.4 kV
POWER SPD TYPE

UL1449 5th Ed. TYPE 4CA
VOLTS
 (V)

120
AC/DC/DC PV/RF

AC
PHASE
 (PH)

1
AMPS
 (A)

N/A
AMBIENT MIN
 (C)

-40
AMBIENT MAX
 (C)

+85
MODES

Ld-Ld
MLV
 (V)

3160
MCOV
 (V)

150
IN
15 impulses 8/20µs
 (kA)

20
SCCR
 (kA)

n/a
IMAX
8/20µs
 (kA)

50
Network type

AC
Technology

VG Technology (MOV+GSG)
Connection to Network

By screw terminals: 2.5-25mm² (35mm² rigid)
Format

Plug-in modular box
Mounting

Symmetrical rail 35 mm (EN 60715)
Operating temperature
 Tu

-40/+85°C
Protection rating

IP20
Failsafe mode

Disconnection from AC network
TECHNOLOGY

MOV-GSG
NETWORK CONFIGURATION

1 Pole, 1W+G, 1PH
CONNECTION METHOD

Screw Terminal (4-13AWG)
MOUNTING

Din Rail
MATERIAL

Thermoplastic UL94-V0
NEMA RATING (IP RATING)

NEMA 2 (IP20)
FAIL-SAFE BEHAVIOR

Disconnection via fuse-link
REAL-TIME DIAGNOSTICS

Visual indicator and remote contacts
DIMENSIONS

See diagram
WEIGHT

0.22 lbs
Certification

UL Recognized
Environmental standards

EU RoHS

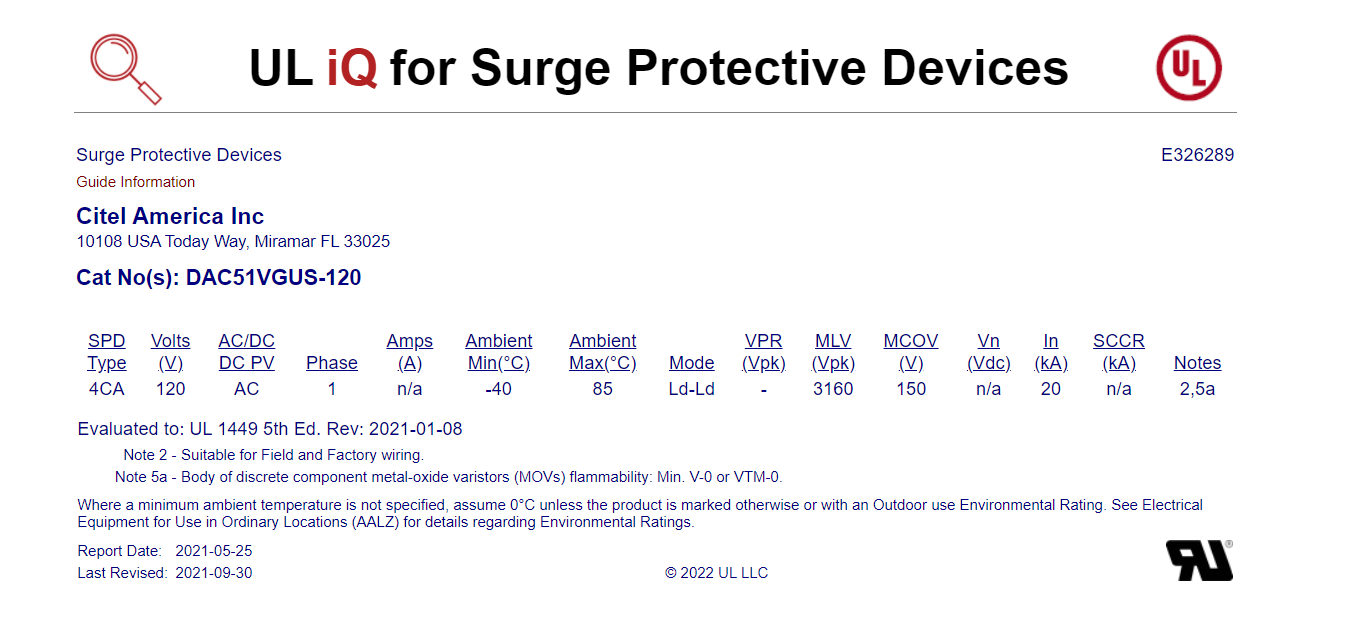

UL STANDARD

UL1449 5th Edition
UL CATEGORY

VZCA2
UL FILE NUMBER

E326289
STANDARDS

NOM-003-SCFI-2014, NOM-001-SCFI-1993
