Imax 40kA - In 20kA - Modular

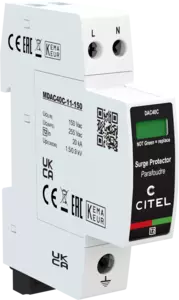

DAC40CS-11-150
Part Number 821520121
- MOV+GSG Technology
- UL1449 TYPE 4CA
- 40kA Surge Current Rating per module
- Visual fault indicator and remote contacts
- 10-Year warranty
Datasheet
Select another reference:
|
Network
|
120 V single-phase | |
|
Total Maximum discharge current
max. total withstand @ 8/20 µs
|
Imax Total | 40 kA |
|
Protection mode(s)
|
L/PE and N/PE | |
|
Residual voltage at 5 kA
@ 5 kA (8/20µs)
|
Up-5kA | 0.6 kV |
|
Protection level L/N
@ In (8/20µs)
|
Up L/N | 0.9 kV |
|
Protection level N/PE
@ In (8/20µs)
|
Up N/PE | 1.5 kV |
|
Residual voltage at 10 kA
@ 8/20µs
|
Up-10kA | 0.7 kV |
|
POWER SPD TYPE
|
IEC Type 2 | |
|
VOLTS
|
(V) | 240/120 |
|
AC/DC/DC PV/RF
|
AC | |
|
PHASE
|
(PH) | 1S |
|
AMPS
|
(A) | N/A |
|
AMBIENT MIN
|
(C) | -35 |
|
AMBIENT MAX
|
(C) | +60 |
|
MODES
|
L-L, L-N, L-G, N-G | |
|
MLV
|
(V) | 1702/1040/1690/1090 |
|
MCOV
|
(V) | 300/150/150/255 |
|
IN
15 impulses 8/20µs
|
(kA) | 20 |
|
SCCR
|
(kA) | n/a |
|
IMAX
8/20µs
|
(kA) | 40 |
|
Iimp
10/350µs
|
(kA) | 4 |
|
Technology
|
MOV+GDT | |
|
Connection to Network
|
By screw terminals: L/N = 1.5-10mm² (16mm² rigid) or PE = 2.5-25mm² (35mm² rigid) | |
|
Format
|
Plug-in modular box | |
|
Failsafe mode
|
Disconnection from AC network | |
|
Weight
|
0.175 kg | |
|
TECHNOLOGY
|
MOV+GSG | |
|
NETWORK CONFIGURATION
|
2 pole, 2W+G, Single/Spilt Phase | |
|
CONNECTION METHOD
|
SPD-Screw Terminal (8-12AWG), Terminal blocks 6AWG | |
|
MOUNTING
|
Wall mount | |
|
MATERIAL
|
Thermoplastic UL94-V0 | |
|
NEMA RATING (IP RATING)
|
NEMA 2 (IP20) | |
|
FAIL-SAFE BEHAVIOR
|
Disconnection via fuse-link | |
|
REAL-TIME DIAGNOSTICS
|
Visual indicator and remote contacts | |
|
DIMENSIONS
|
See diagram | |
|
WEIGHT
|
0.60 lbs | |
|
SPARE PART
|
n/a |
|
Certification
|
KEMA | |
|
UL STANDARD
|
- | |
|
UL CATEGORY
|
- | |
|
UL FILE NUMBER
|
- | |
|
STANDARDS
|
NOM-003-SCFI-2014, NOM-001-SCFI-1993 | |
|
ENVIRONMENTAL STANDARDS
|
ROHS |
