Carril DIN Corriente Alterna (CA)
Part Number: 32161155

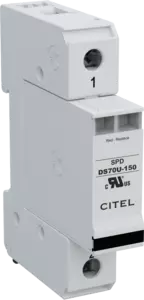

DS71US-150
Seleccionar una referencia :
DS71US-150
-
DS71US-210
-
DS71US-210-Ex
-
DS71US-275
-
DS71US-275-Ex
-
DS71US-420
-
DS71US-420-Ex
-
DS71US-460
-
DS71US-460-Ex
-
DS72US-120S
-
DS72US-120T/NN
-
DS72US-230S
-
DS72US-240T/NN
-
DS73US-120T
-
DS73US-120Y/NN
- DS73US-240Y/NN
-
DS73US-277Y/NN
-
DS74US-120Y
-
DS74US-230Y
-
DS74US-240D
-
DS74US-240Y
-
DS74US-277Y
-
DS74US-347Y
-
DS74US-480D
-
DS74US-600D
-
DS75US-400Y
Ficha de datos
|
|
UL1449 5th Ed. TYPE 4CA |
|
|
TENSION
|
(V) | 120 |
|
|
AC |
|
|
FASE
|
(PH) | 1 |
|
|
(A) | N/A |
|
|
(C) | -35 |
|
|
(C) | +85 |
|
MODOS
|
L-G |
|
|
|
(V) | 1100 |
|
|
(V) | 150 |
|
|
(kA) | 20 |
|
Icc
cortocircuito
|
(kA) | n/a |
|
TECNOLOGIA
|
Multi-MOV |
|
|
CONFIGURACION DE RED
|
2 wires |
|
|
FORMA DE CONEXION
|
Screw Terminal, 13-2AWG Solid Wire, 13-4AWG Stranded Wire |
|
|
MONTAJE
|
Din Rail |
|
|
|
Thermoplastic UL94-V0 |
|
|
|
NEMA 2 (IP20) |
|
|
DESCONEXION SEGURA
|
Disconnection via fuse-link |
|
|
|
Visual indicator and remote contacts |
|
|
|
See diagram |
|
Certificación
|
UL Recognized |
|
|
Normas ambientales
|
EU RoHS |
|
|
|
UL1449 5th Edition |
|
|
|
VZCA2, VZCA8 |
|
|
|
E326289 |
|
|
NORMAS
|
NOM-003-SCFI-2014, NOM-001-SCFI-1993 |
