Surge Protection for WaterJet Cutting Machine

NFPA 70 Article 670.6 (NEC 2020)
NFPA 79 Electrical Standard for Industrial Machinery (2018)

waterjet machine workshop
NFPA 79 Industrial Machinery WaterJet cuting workshop

NEC-2020 The latest release of NEC/NFPA 70 edition 2020 (NEC 2020) has placed a greater emphasis on increasing personnel safety by mandating the use of Surge Protective Devices (SPDs).

From 2014 to 2020, the number articles now requiring SPDs has increased significantly for applications ranging from Modular Data Centers, Fire Pumps, Elevators, Critical Power Systems, Dwellings (Dormatories, Homes, Hospitals, Hotels), etc.

Threat to industrial machines

Various codes and standards possess safety interlock criteria including the American National Standards Institute (ANSI) standards and NFPA 79 for Industrial Machinery. However, until now, these standards have only just begun to address the expanding role that surge protection plays preserving the integrity of equipment and, more importantly, protecting the lives of personnel.

A study commissioned by the Fire Protection Research Foundation, “Data Assessment for Electrical Surge Protective Devices”, provides results of a survey of facility managers concerning surge damage. (NFPA 2014) The study shows that 26 percent of facility managers had damage to safety interlocking systems on industrial machines due to surges . The main purpose of these safety interlocking systems is to protect workers and maintenance personnel from contact with exposed live parts and electric shock. Failure of these devices can put personnel at an increased risk of injury.

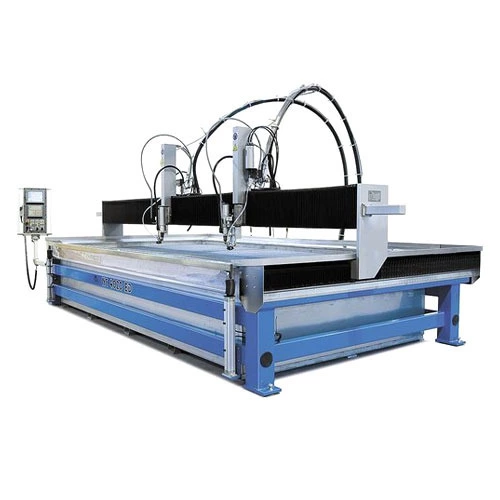

Water Jet Cutting Machine
CNC WaterJet Cutting Machine

The solution for NFPA 70 and NFPA 79

To make the installation of a Surge Protective Device (SPD) at the industrial machines interlocking safety circuit mandatory which in turn increases the equipments reliability.

NFPA 70 Article 670.6 Surge Protection.
"Industrial machinery with safety inter-lock circuits shall have surge protection installed.”

In addition, the future NFPA 79 is considering the following changes:

7.8.1 Surge Protective Devices (SPDs).
"SPDs shall be provided for industrial machinery with safety interlock circuits to protect against the effects of overvoltages due to lightning or switching surges.”

as well as

4.5.2 Electromagnetic Compatibility (EMC).
"Transient suppression, isolation, or other appropriate means shall be provided where the equipment of an industrial machine generates electrical noise or transients, which can affect the operation of equipment that is on or part of the industrial machine."

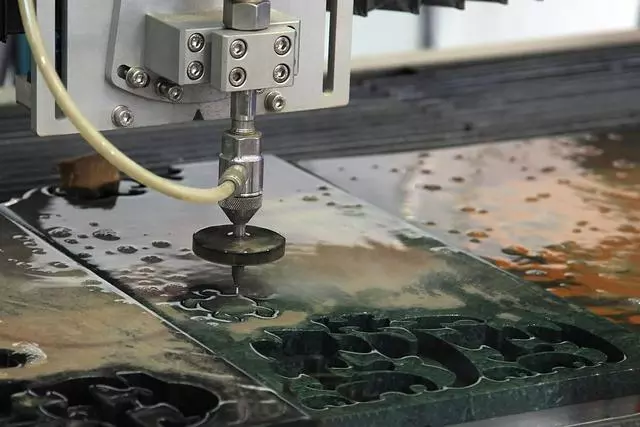

Water Jet Cutting Drill
CNC WaterJet Cutting Drill

Selecting an SPD for WaterJet Cutting Machine

NEC/NFPA 70 require that Surge Protective Devices (SPDs) shall be UL1449 Listed . This means selecting a surge protector is easier than it has ever been. There are only a few choices available for SPDs that are UL Listed for any of the most commonly used surge standards including UL1449 5th Edition, UL497B, and UL497E.

Recommended SPD for WaterJet Cutter

LocationEquipmentSystemSurge Protector Model#Link
Service EntranceMain Service Panelboard480Vac MDS750E-480D MDS750E-480D
Branch PanelEquipment Panelboard480Vac${ITEM_LINK#2178948}<-No Item, #2178948 M50-480D-A${ITEM_LINK#2178948}<-No Item, #2178948 M50-A
Local EquipmentControl Panel480Vac
Power Input
DS74US-480D DS74US-480D

Power Supply120-240Vac
Power Input
DS72US-230S/G DS72US-120S/G

24Vdc Power Output DS220S-24DC DS220S-24DC

Control UnitEthernet Cat 6A MJ8-C6A MJ8-C6A

4-20mA DLA-24D3 DLA-24D3 v.2

Wireless P8AX09-6G-N/FF P8AX09-6G-N-FF

Types of machines covered by NFPA 79

TypeDescription
Machine ToolsMetal Cutting
Metal Forming
Plastics MachineryInjection molding machines
Extrusion machinery
Blow molding machines
Specialized processing machines
Thermostat molding machines
Size reduction equipment
Wood MachineryWoodworking machinery
Laminating machinery
Sawmill machinery
Material-Handling MachineryIndustrial robots
Transfer machines
Sortation machines
Inspection/Testing MachinesCoordinate measuring machines
In-process gauging machines
Packaging MachinesCarton-strapping machines
Drum-filling machines
Palletizing machines

Contact us to develop a surge mitigation solution for your application

Where to purchase Citel SPD's

References

#Title
1NFPA 70 edition 2020, Article 670 Industrial Machinery, 670.6 Surge Protection
2NFPA 70 edition 2017, Article 670 Industrial Machinery, 670.6 Surge Protection
3NFPA 70 edition 2014, “Data Assessment for Electrical Surge Protective Devices”
4NFPA 79 edition 2018, Electrical Standard for Industrial Machinery, Chapter 7,
7.8 Protection Against Overvoltages Due to Lightning and Switching Surges
7.8.1 Surge Protective Devices (SPDs)
5NFPA 79 edition 2018, Annex C, Examples of Industrial Machines Covered by NFPA79
6ANSI C62.41, Low-Voltage AC Power Circuits
7UL1449 4th Edition, Surge Protective Devices
8UL1449 5th Edition, Surge Protective Devices
9UL497B, Surge Protectors for Data Lines and Fire-Alarm Circuits
10UL497E, Antenna Lead-in Conductors
11IEC 61643-11, Low-Voltage Surge Protective Devices - Part 11: Surge Protective Devices Connected To Low-Voltage Power Systems - Requirements And Test Methods
12IEC 61643-21, Low Voltage Surge Protective Devices - Part 21: Surge Protective Devices Connected To Telecommunications And Signalling Networks - Performance Requirements And Testing Methods
13IEC 61000-45, Electromagnetic Compatibility (EMC) - Part 4-5: Testing And Measurement Techniques - Surge Immunity Test
14CSA 22.2
15NOM-001-SCFI, Standard for Electronic Equipment
16NOM-003-SCFI, Electrical Products - Safety Requirements
17SEMI S22, Safety Guideline for the Electrical Design of Semiconductor Manufacturing Equipment

Manufacturers of Waterjet Cutting Machine

ManufacturerLocationModel #Description
ESABDenton, TXHydrocut LXWaterjet Cutting Machine
Flow WaterjectKent, WAMach 200 2031Waterjet Cutting Machine
Flow WaterjectKent, WAMach 300 2015Waterjet Cutting Machine
Flow WaterjetKent, WAMach 300 3015Waterjet Cutting Machine
Flow WaterjetKent, WAMach 500 2040Waterjet Cutting Machine
Flow WaterjetKent, WAMach 500 2060Waterjet Cutting Machine
Flow WaterjetKent, WAMach 500 4040Waterjet Cutting Machine
Flow WaterjetKent, WAMach 700 4080Waterjet Cutting Machine
Flow WaterjetKent, WAMach 700 5080Waterjet Cutting Machine
Flow WaterjetKent, WANanoJetWaterjet Cutting Machine
Hypertherm IncHanover, NHEchlon 15Waterjet Cutting Machine
Hypertherm IncHanover, NHEchlon 30Waterjet Cutting Machine
Hypertherm IncHanover, NHEchlon 50Waterjet Cutting Machine
Hypertherm IncHanover, NHHyPrecision 50SWaterjet Cutting Machine
Hypertherm IncHanover, NHHyPrecision 60SWaterjet Cutting Machine
Hypertherm IncHanover, NHHyPrecision 75SWaterjet Cutting Machine
Hypertherm IncHanover, NHHyPrecision 100DWaterjet Cutting Machine
Hypertherm IncHanover, NHHyPrecision 150DWaterjet Cutting Machine
International Waterjet MachinesAlhambra, CAWC5WA2513HWaterjet Cutting Machine
International Waterjet MachinesAlhambra, CAWC5WA3216HWaterjet Cutting Machine
International Waterjet MachinesAlhambra, CAWC5WA3020HWaterjet Cutting Machine
International Waterjet MachinesAlhambra, CAWC5WA6030HWaterjet Cutting Machine
International Waterjet MachinesAlhambra, CAWC5WA1313HWaterjet Cutting Machine
Jet EdgeSaint Michael, MNMR513Waterjet Cutting Machine
Jet EdgeSaint Michael, MNHR2410Waterjet Cutting Machine
Jet EdgeSaint Michael, MNMR813Waterjet Cutting Machine
Jet EdgeSaint Michael, MNMR2113Waterjet Cutting Machine
Jet EdgeSaint Michael, MNHR44Waterjet Cutting Machine
Jet EdgeSaint Michael, MNHR614Waterjet Cutting Machine
Jet EdgeSaint Michael, MNHR1014Waterjet Cutting Machine
Jet EdgeSaint Michael, MNHR128Waterjet Cutting Machine
Jet EdgeSaint Michael, MNHR1414Waterjet Cutting Machine
Jet EdgeSaint Michael, MNHR1812Waterjet Cutting Machine
KNUTHLincolnshire, ILWater-Jet B 2010Waterjet Cutting Machine
KNUTHLincolnshire, ILWater-Jet B 2040Waterjet Cutting Machine
KNUTHLincolnshire, ILWater-Jet B 2060Waterjet Cutting Machine
KNUTHLincolnshire, ILWater-Jet B 3015Waterjet Cutting Machine
KNUTHLincolnshire, ILWater-Jet B 3020Waterjet Cutting Machine
KNUTHLincolnshire, ILWater-Jet B 3040Waterjet Cutting Machine
KNUTHLincolnshire, ILWater-Jet B 3060Waterjet Cutting Machine
KNUTHLincolnshire, ILWater-Jet B 3080Waterjet Cutting Machine
Koike AronsonArcade, NYK-JetWaterjet Cutting Machine
Koike AronsonArcade, NYShopJetWaterjet Cutting Machine
OMAXKent, WAOMAX MicroMAXWaterjet Cutting Machine
OMAXKent, WAOMAX 2652Waterjet Cutting Machine
OMAXKent, WAOMAX 60120Waterjet Cutting Machine
OMAXKent, WAOMAX 80XWaterjet Cutting Machine
OMAXKent, WAOMAX 160X-3Waterjet Cutting Machine
OMAXKent, WAMAXIEM 1530Waterjet Cutting Machine
OMAXKent, WAMAXIEM 2040Waterjet Cutting Machine
OMAXKent, WAMAXIEM 3060Waterjet Cutting Machine
OMAXKent, WAGlobalMAX 1508Waterjet Cutting Machine
OMAXKent, WAGlobalMAX 1530Waterjet Cutting Machine
Semyx
Cutting Solutions
Dalton, GAInfinity 340Waterjet Cutting Machine
Semyx
Cutting Solutions
Dalton, GAInfinity 360Waterjet Cutting Machine
Semyx
Cutting Solutions
Dalton, GAInfinity 380Waterjet Cutting Machine
Semyx
Cutting Solutions
Dalton, GAInfinity 3100Waterjet Cutting Machine
Semyx
Cutting Solutions
Dalton, GAInfinity 3120Waterjet Cutting Machine
Semyx
Cutting Solutions
Dalton, GAInfinity 440Waterjet Cutting Machine
Semyx
Cutting Solutions
Dalton, GAInfinity 460Waterjet Cutting Machine
Semyx
Cutting Solutions
Dalton, GAInfinity 480Waterjet Cutting Machine
Semyx
Cutting Solutions
Dalton, GAInfinity 4100Waterjet Cutting Machine
Semyx
Cutting Solutions
Dalton, GAInfinity 4120Waterjet Cutting Machine
Semyx
Cutting Solutions
Dalton, GATitan 320Waterjet Cutting Machine
Semyx
Cutting Solutions
Dalton, GATitan 420Waterjet Cutting Machine
Semyx
Cutting Solutions
Dalton, GAOptima 216Waterjet Cutting Machine
Semyx
Cutting Solutions
Dalton, GAOptima 320Waterjet Cutting Machine
Semyx
Cutting Solutions
Dalton, GAOptima 420Waterjet Cutting Machine
Semyx
Cutting Solutions
Dalton, GAGenesis s16Waterjet Cutting Machine
Semyx
Cutting Solutions
Dalton, GAGenesis 230Waterjet Cutting Machine
Semyx
Cutting Solutions
Dalton, GAGenesis 240Waterjet Cutting Machine
Semyx
Cutting Solutions
Dalton, GAGenesis 260Waterjet Cutting Machine
Semyx
Cutting Solutions
Dalton, GACobra 5100Waterjet Cutting Machine
Soitaab USANapierville, ILWaterTech PROWaterjet Cutting Machine
Soitaab USANapierville, ILWaterTech REDWaterjet Cutting Machine
Soitaab USANapierville, ILWaterTech NOVAWaterjet Cutting Machine
Techni WaterjetLenexa, KSIntec-G2 i510Waterjet Cutting Machine
Techni WaterjetLenexa, KSIntec-G2 i612Waterjet Cutting Machine
Techni WaterjetLenexa, KSIntec-G2 i713Waterjet Cutting Machine
Techni WaterjetLenexa, KSIntec-G2 i1015Waterjet Cutting Machine
Techni WaterjetLenexa, KSIntec-G2 i1020Waterjet Cutting Machine
Techni WaterjetLenexa, KSTJ3000-X3Waterjet Cutting Machine
Techni WaterjetLenexa, KSTJ4000-X3Waterjet Cutting Machine
Techni WaterjetLenexa, KSTJ5000-X3Waterjet Cutting Machine
Techni WaterjetLenexa, KSTJ6000-X3Waterjet Cutting Machine
Techni WaterjetLenexa, KSTJ4100-GWaterjet Cutting Machine
WARDJet IncTallmadge, OHE-0606Waterjet Cutting Machine
WARDJet IncTallmadge, OHG-6018Waterjet Cutting Machine
WARDJet IncTallmadge, OHJ-138Waterjet Cutting Machine
WARDJet IncTallmadge, OHE-1530Waterjet Cutting Machine
WARDJet IncTallmadge, OHR-1214Waterjet Cutting Machine
WARDJet IncTallmadge, OHZ-3064Waterjet Cutting Machine
WARDJet IncTallmadge, OHR-2014Waterjet Cutting Machine
WARDJet IncTallmadge, OHR-3014Waterjet Cutting Machine
WARDJet IncTallmadge, OHG-4018Waterjet Cutting Machine
WARDJet IncTallmadge, OHR-5014Waterjet Cutting Machine
Water Jet SwedenRonneby, SwedenFiveXWaterjet Cutting Machine
Waterjet USAGeneva, ILClassica CL44Waterjet Cutting Machine
Waterjet USAGeneva, ILClassica CL510Waterjet Cutting Machine
Waterjet USAGeneva, ILClassica CL612Waterjet Cutting Machine
Waterjet USAGeneva, ILPrima LT510Waterjet Cutting Machine
Waterjet USAGeneva, ILPrima LT612Waterjet Cutting Machine
Waterjet USAGeneva, ILSuprema DX44Waterjet Cutting Machine
Waterjet USAGeneva, ILSuprema DX612Waterjet Cutting Machine
Waterjet USAGeneva, ILPractica FB44Waterjet Cutting Machine
Waterjet USAGeneva, ILPractica FB510Waterjet Cutting Machine
Waterjet USAGeneva, ILPractica FB612Waterjet Cutting Machine
