CITEL ETHERNET & POE SURGE PROTECTION DEVICE OVERVIEW

MJ8 Ethernet Surge Protective Device	MJ8-C6A is designed to protect Ethernet Cables up to Category 6A. The MJ8 features robust surge handling up to 16kA, shielded RJ45 connectors and supports transmission rates of 10 Gb/s at 500 MHz. The MJ8 is UL497B listed.

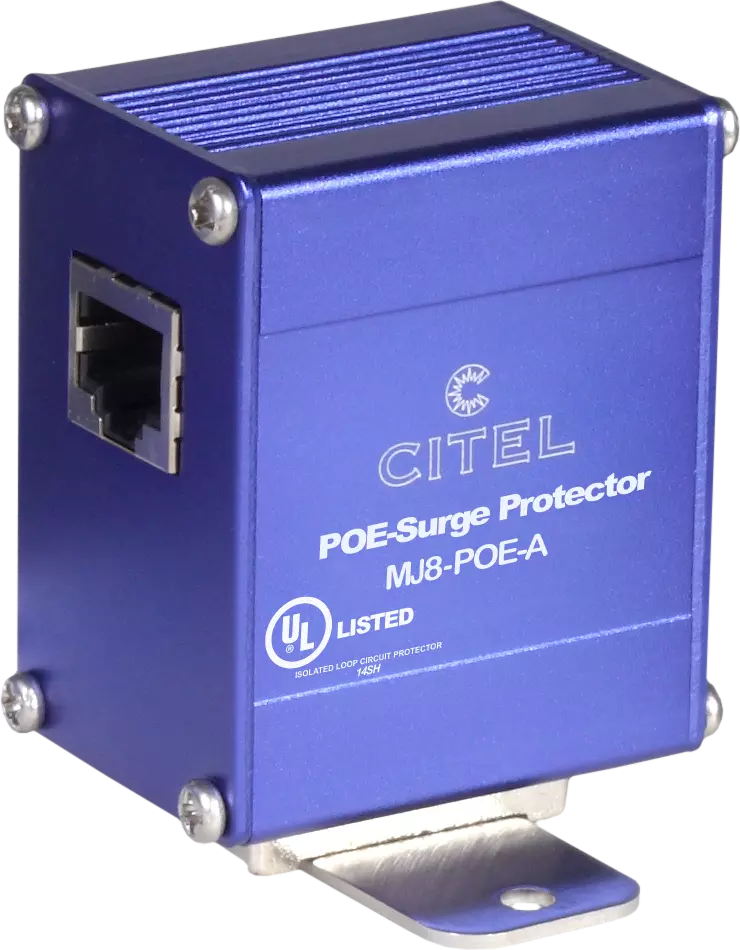

MJ8-POE Power over Ethernet Surge Protective Devices	- MJ8-POE-C6A, MJ8-POE-A, MJ8-POE-B MJ8-POE feature robust surge handling up to 16kA, supports POE++ and transmission rates of up to 10 Gb/s at 500 MHz. MJ8-POE are UL497B listed.
MSP-VMxx/RINJ POE Surge Protective Device/Power Injector	- MSP-VM24/RINJ, MSP-VM48/RINJ MSP-VM feature robust surge handling up to 16kA for Cat 5e POE. The MSP-VM provides combined surge protection and protects external DC power injection.

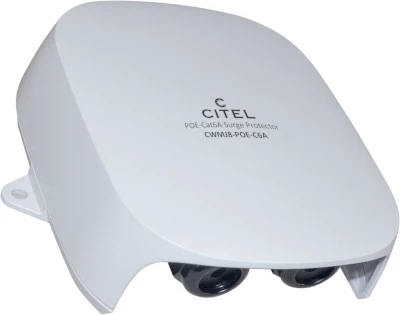

Category 6A Outdoor POE Surge Protective Device	CWMJ8-POE-C6A is an outdoor SPD for Ethernet Cables up to Cat. 6A. The CWMJ8 features surge handling up to 16kA, shielded RJ45 connectors and supports transmission rates of 10 Gb/s at 500 MHz. The CWMJ8 is UL497B listed.

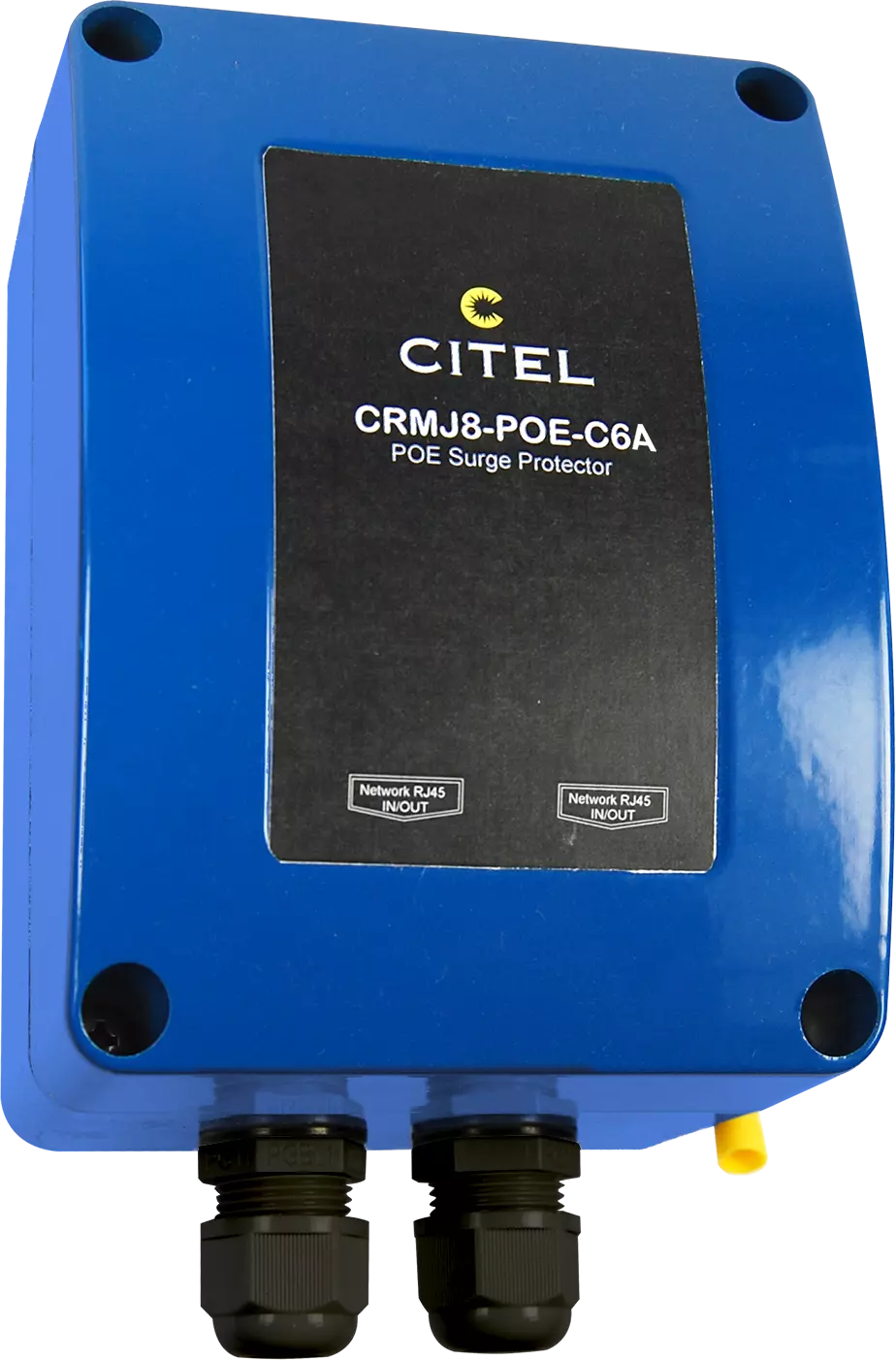

Category 6A Outdoor POE Surge Protective Device	CRMJ8-POE-C6A is an outdoor SPD for Ethernet Cables up to Cat. 6A. The CRMJ8 features surge handling up to 16kA, shielded RJ45 connectors and supports transmission rates of 10 Gb/s at 500 MHz. The CRMJ8 is UL497B listed.
Category 5E Outdoor POE Surge Protective Device	CGMJ8-POE-A-C5E is an outdoor SPD for Ethernet Cables up to Cat. 5E. The CGMJ8 features surge handling up to 16kA, RJ45 connectors, supports POE A and transmission rates of 1 Gb/s at 100 MHz. The CGMJ8 is UL497B listed.
Category 5E Outdoor POE Surge Protective Device	CGMJ8-POE-B-C5E is an outdoor SPD for Ethernet Cables up to Cat. 5E. The CGMJ8 features surge handling up to 16kA, RJ45 connectors, supports POE B and transmission rates of 1 Gb/s at 100 MHz. The CGMJ8 is UL497B listed
	Regarding CITEL Ethernet and POE Surge Protective devices, go to www.CITEL.US and click on DATALINE. Product information can be found under DIN RAIL DATA and SURFACE MOUNT DATA. Please contact Inside Sales if you have questions.
