Surge Protection for Electric Bus Charging Stations
OVERVIEW
Today’s increased reliance on very sensitive electronics makes surge protection an important topic for Electric Vehicle (EV) Charging Systems used for eMobility applications such as Electric Bus or eBus. The Insurance Institute for Business & Home Safety study found that $26 billion dollars was lost due to non-lightning power surges. In addition, there are about 25 million lightning strikes in the US each year that cause between $650M to $1B in losses according to the Insurance Information Institute, State Farm©. This article discusses the various types of EV Charging Systems and Electric Vehicle Supply Equipment (EVSE) to help you develop a comprehensive surge mitigation strategy. Each section will provide a recommendation on exactly which EV surge protector to use for your equipment and where to install these Surge Protective Devices for EV Chargers.
eBus Charging Stations

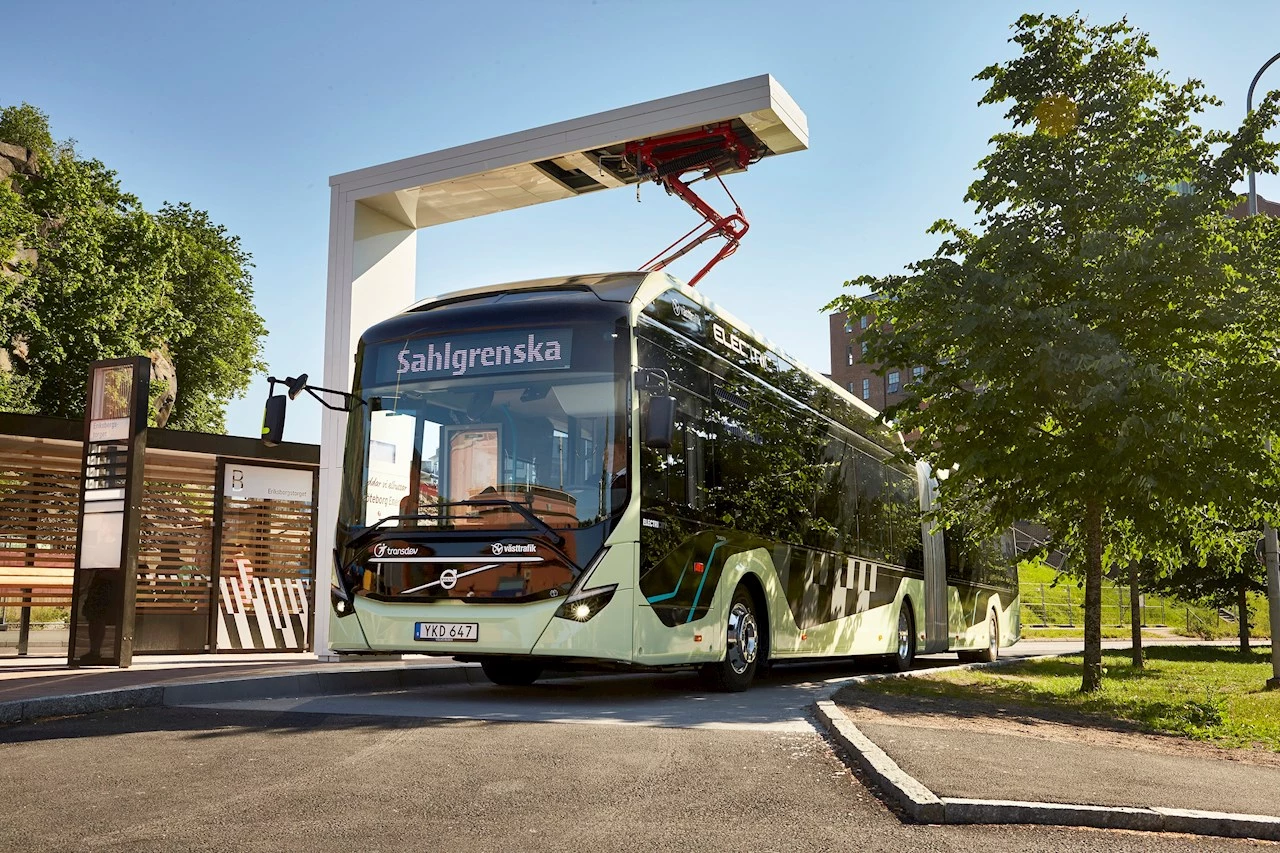

The fastest charging method (30 minutes for 124 miles) but also the most costly. These are connected to the power utility grid with an AC to DC power conversion module. The output DC voltage range is from 120Vdc to 1000Vdc with higher voltages expected in the future. In addition to the AC source, these systems can be fed or supplemented with by a photovoltaic power plant or energy storage system.
EV SPD Protection Point - DC Power Cabinet and Pantograph Charging Dispenser
| Location | Equipment | Protection Point | Surge Protector Model # | Link |
|---|---|---|---|---|
|
| Power Cabinet | 277Vac Power Input | DS73US-277Y/NN |
|
| Up to 1500VDC Power Output | DS50PVS-1500/51 |
| ||
| 120-240Vac Power Input | DS72US-240T/NN |
| ||
| Ethernet Cat 6A | MJ8-C6A |
| ||
|
| Pantograph Charging Dispenser | Up to 1500VDC Power Input | DS50PVS-1500/51 |
|
| Ethernet Cat 6A | MJ8-POE-C6A |
|
|
| |
|---|---|
