Instalaciones eléctricas

M50-277Y-B
Part Number: 89751511
M50-277Y-B
Availability:
217,00 US$ (excl. tax)
Add to cart
UL1449 TYPE 1/2 LISTED
TENSION
 (V) 277/480
AC
FASE
 (PH) 3Y
(A) N/A
(C) -35
(C) +80
MODOS
 L-L, L-N, L-G, N-G
(V) 2500/1200/1500/1200
(V) 560/320/320/280
(kA) 20
Icc
cortocircuito
 (kA) 150
(kA) 50
TECNOLOGIA
 MOV-GSG
CONFIGURACION DE RED
 3PH, 4W+G, Wye
FORMA DE CONEXION
 36" #12 AWG LEADS
MONTAJE
 BACK MOUNT, THREADED M22 (1/4" NPT ADAPTER)
Aluminum cast
6 (IP66)
DESCONEXION SEGURA
 Yes, no upstream over current protection required
LED and audible alarm

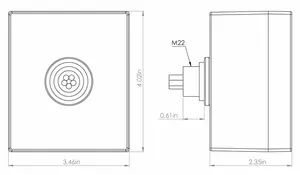

See diagram
2.5 lbs.
UL1449 5th Edition
VZCA
E326289
NORMAS
 NOM-003-SCFI-2014, NOM-001-SCFI-1993
ROHS
