Carril DIN Corriente Alterna (CA)

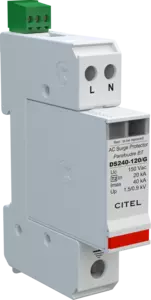

DS240S-120/G
Código artículo 311631
Available within 3 weeks
Ficha de datos
Seleccionar una referencia :
|
Red
|
120 V monofásica | |
|
Corriente de descarga máximal total
Capacidad máx. total en onda 8/20µs
|
Imax Total | 40 kA |
|
Modo(s) de protección
|
Modo Común o Mode Diferenciado | |
|
Tensión residual a 5 kA
@ 5 kA (8/20µs)
|
Up-5kA | 1.5/0.6 kV |
| UL1449 5th Ed. TYPE 4CA | ||
|
TENSION
|
(V) | 240/120 |
| AC | ||
|
FASE
|
(PH) | 1S |
| (A) | N/A | |
| (C) | -35 | |
| (C) | +60 | |
|
MODOS
|
L-L, L-G, L-N, N-G | |
| (V) | -/1460/1890/1340 | |
| (V) | -/150/150/255 | |
| (kA) | 20 | |
|
Icc
cortocircuito
|
(kA) | n/a |
| (kA) | 40 |
|
Conexión à la red
|
Por terminales de tornillos : 1.5-10 mm² (L/N) o 2.5-25 mm² (PE) | |
|
Formato
|
Caja modular desenchufable | |
|
Modo de fallo
|
Desconexión de la red Baja Tensión | |
|
TECNOLOGIA
|
MOV+GSG | |
|
CONFIGURACION DE RED
|
2 pole, 2W+G, Single/Spilt Phase | |
|
FORMA DE CONEXION
|
Screw Terminal, 15-5AWG Solid Wire, 15-7AWG Stranded Wire | |
|
MONTAJE
|
Din Rail | |
| Thermoplastic UL94-V0 | ||
| NEMA 2 (IP20) | ||
|
DESCONEXION SEGURA
|
Disconnection via fuse-link | |
| Visual indicator and remote contacts | ||
| See diagram (mm) | ||
| 0.30 lbs |
|
Certificación
|
CSA / UL | |
| UL1449 5th Edition | ||
| VZCA2, VZCA8 | ||
| E326289 | ||
|
NORMAS
|
NOM-003-SCFI-2014, NOM-001-SCFI-1993 | |
| ROHS |
| mm² | 1.5 mm² | |
| mm² | 16 mm² | |
| mm² | 1.5 mm² | |
| mm² | 10 mm² | |
| AWG | 15 AWG | |
| AWG | 5 AWG | |
| Nm | 1.2-1.5 | |
| in-lbs | 10.6-13.3 | |
| mm | 16 mm | |
| in | 0.63 in | |
| °C | -40 °C | |
| °C | 85 °C | |
| °F | -40 °F | |
| °F | 85 °F | |
| %RH | 95 | |
| Ft | 2000 Ft | |
| Ft | 6500 Ft | |
| V0 | ||
| Rail Din | ||
| IP20 | ||
| Module | ||
| mm | 90 mm | |
| mm | 67 mm | |
| mm | 18 mm | |
| In | 3.54 In | |
| In | 2.63 In | |
| In | 0.71 In |
| Yes | ||
| °C | -40 °C | |
| °C | 85 °C | |
| °F | -40 °F | |
| °F | 85 °F | |
| %RH | 95 %RH | |
| 10 Years |
