Surge Protector Power Distribution Centers for Communications Equipment
OVERVIEW
Today’s increased reliance on sensitive electronics makes surge protection an important topic for most industries. The Insurance Institute for Business & Home Safety study found that $26 billion dollars was lost due to non-lightning power surges. In addition, there are about 25 million lightning strikes in the US each year that cause between $650M to $1B in losses according to the Insurance Information Institute, State Farm©.
Power Distribution Centers (PDC) is a critical component for companies that utilize communication equipment and data centers. DC Power is an efficient power source that can help to increase reliability and decrease the overall cost of operation. They are found across multiple industries including Telecommunications, Data Centers, Marine, Renewable Energy Microgrids, Utilities, Rail and Material Handling.
Directly installed inside a UL 1801 Power Distribution Center at the incoming AC power feed, these devices are vulnerable to electrical transients from Lightning and Switching Events. Based on solid state components, their surge electrical withstand capability is limited and increases the need for a global surge mitigation solution to avoid costly downtime.
This section will identify the UL 1449 5th Edition Surge Protective Devices (SPD) to efficiently protect the DC power input of the DC Power Distribution Center. It is important that the SPD is rated for DC power and shall in listed as such in the UL listing available at UL.com.
|
|

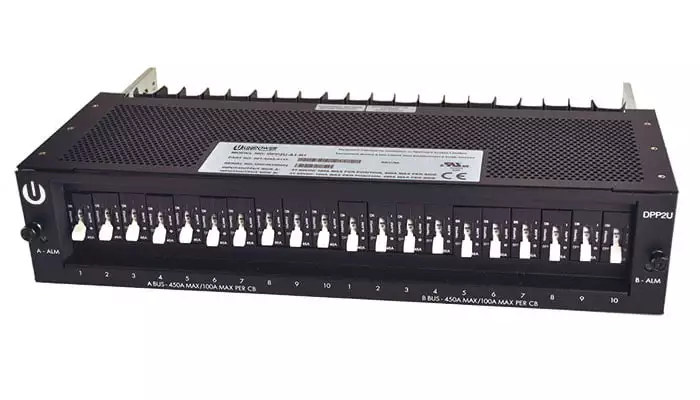

| 1U DC Power Distribution Center |
DC Power Distribution Center
The main DC incoming will be the primary location to protect the drive against electrical surges and overvoltage. There can be a multitude of DC input voltages for the Power Distribution Center but the most common are 12Vdc, 24Vdc, 48Vdc, 75Vdc, 125Vdc, 250Vdc, 350Vdc and 380Vdc.The common surge protectors used below :
| Location | System | Surge Protector Model # | Link |
|---|---|---|---|

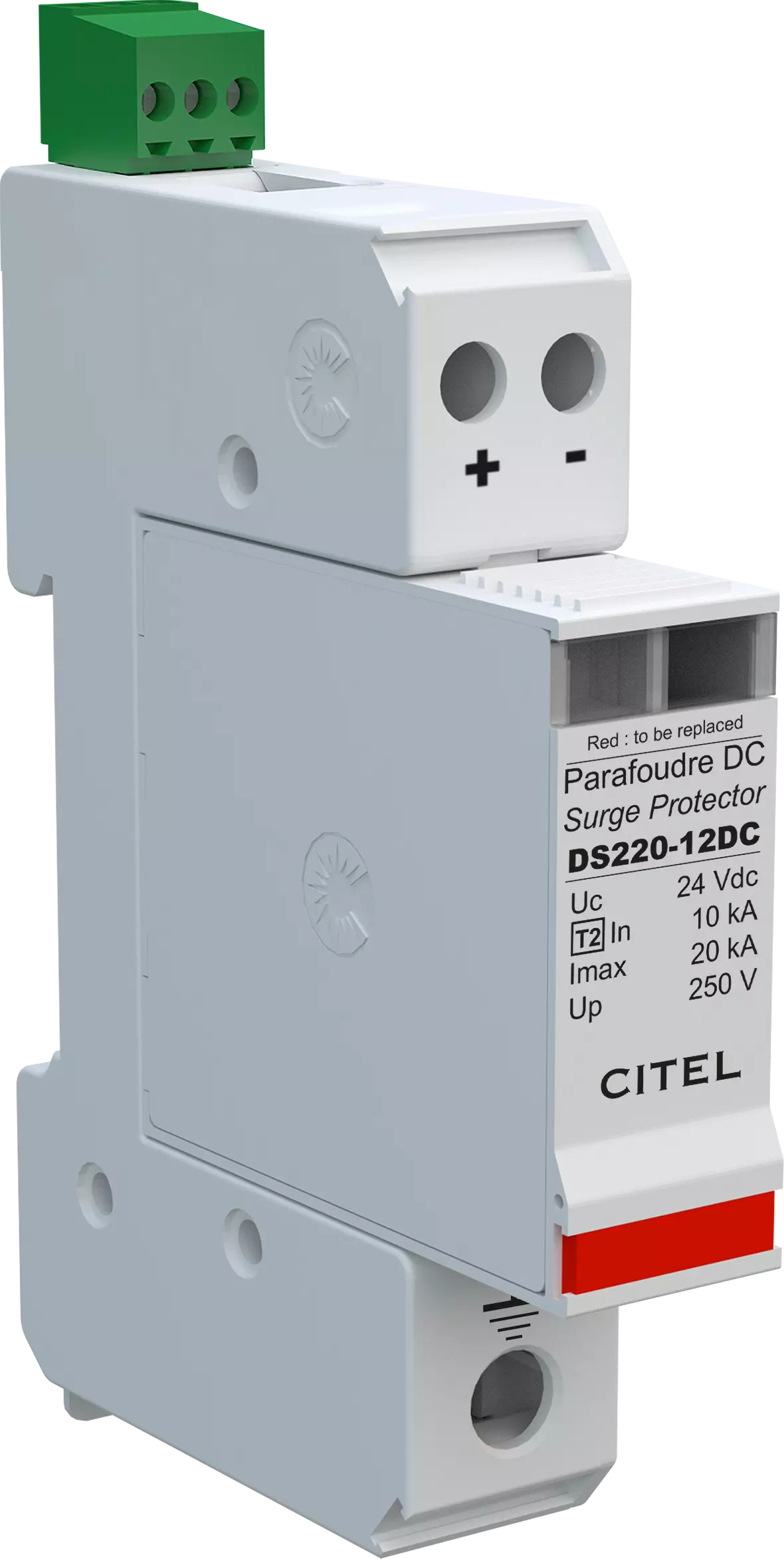

| DC Bus Input | 12Vdc (2W+G) | DS220S-12DC |
|

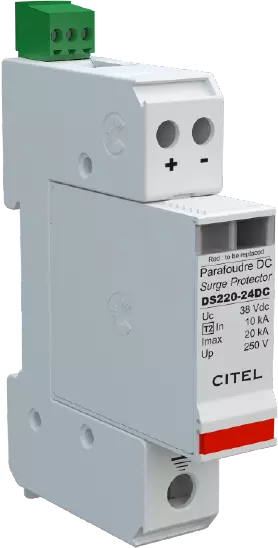

| 24Vdc (2W+G) | DS220S-24DC |
| |

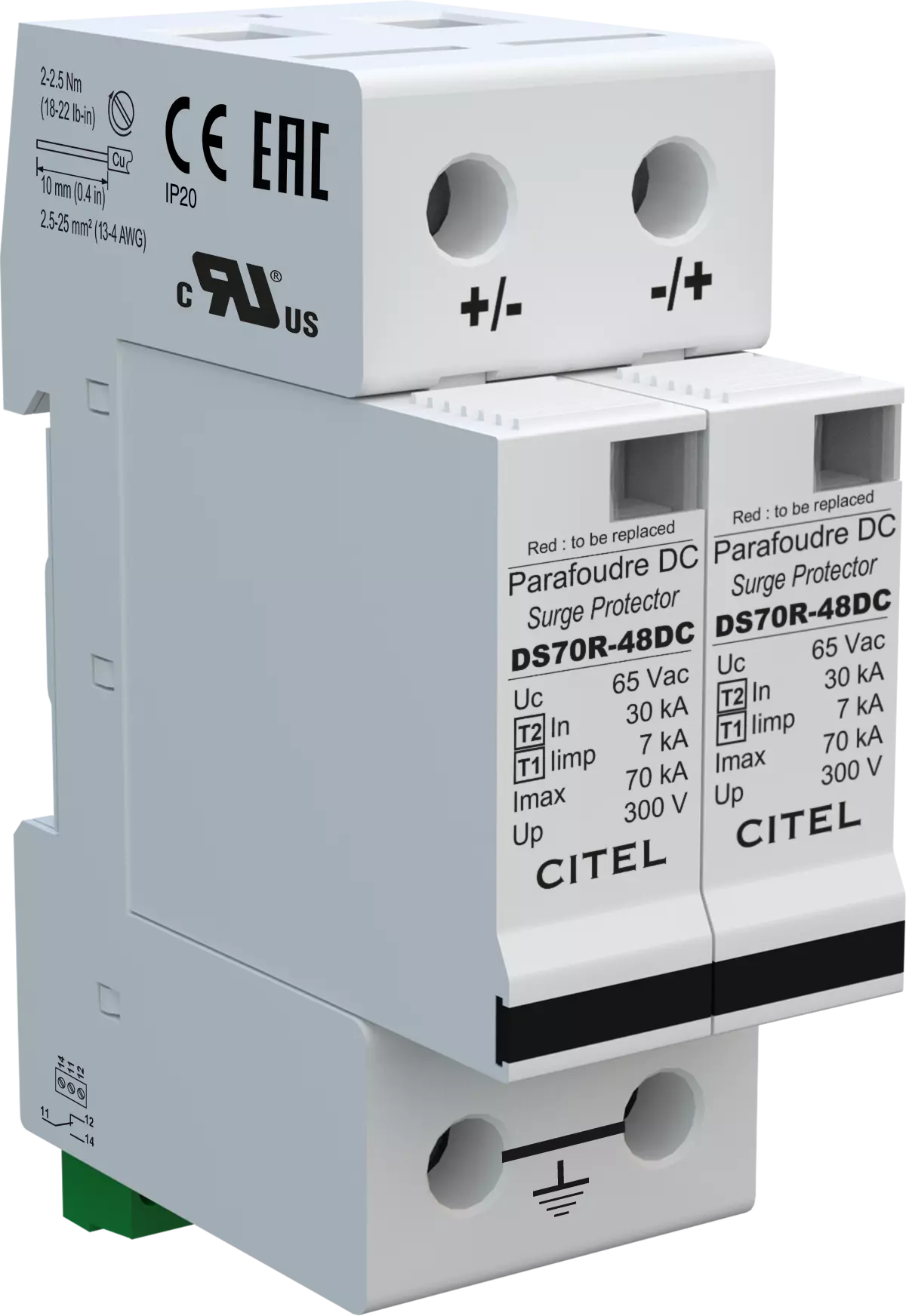

| 48Vdc (2W+G) | DS230S-48DC |
| |
| 48Vdc (2W+G) | DS72RS-48DC |
| |
| 75Vdc (2W+G) | DS240S-75DC |
| |
| 125Vdc (2W+G) | DS240S-130DC |
| |
| 350Vdc (2W+G) | DS240S-350DC |
| |
| 380Vdc (2W+G) | DS240S-350DC |
| |
| Alarm Contact Input | 1A 60Vdc Form C Dry Contact | DS71US-275 |
|
| Alarm Contact Output | RS485, CAN Bus, Modbus | DLA-12D3 |
|
| 4-20mA Current Loop | DLA-24D3 |
| |
| LAN Communication Port | RJ45 up to CAT6A | MJ8-C6A |
|
|
| |
|---|---|
