Schneider Electric SSP02CDSE20A1 Comparison CITEL MS200-120Y Surge Protective Device (SPD)
|  |
|---|---|
SSP02CDSE20A1 Surge Protector | |
Intended Application System | |
System Voltage | 120/208 Vac |
Number of Phases | 3 |
Conductors | 4W+G |
Configurations | AC |
Product Comparison Table
This page collects publicly available data from ul.com and assembles a side by side reference table for a convenient product cross reference.
Manufacturer |
|
|
|---|---|---|
UL File # | E326289 | - |
Model | SSP02CDSE20A1 | |

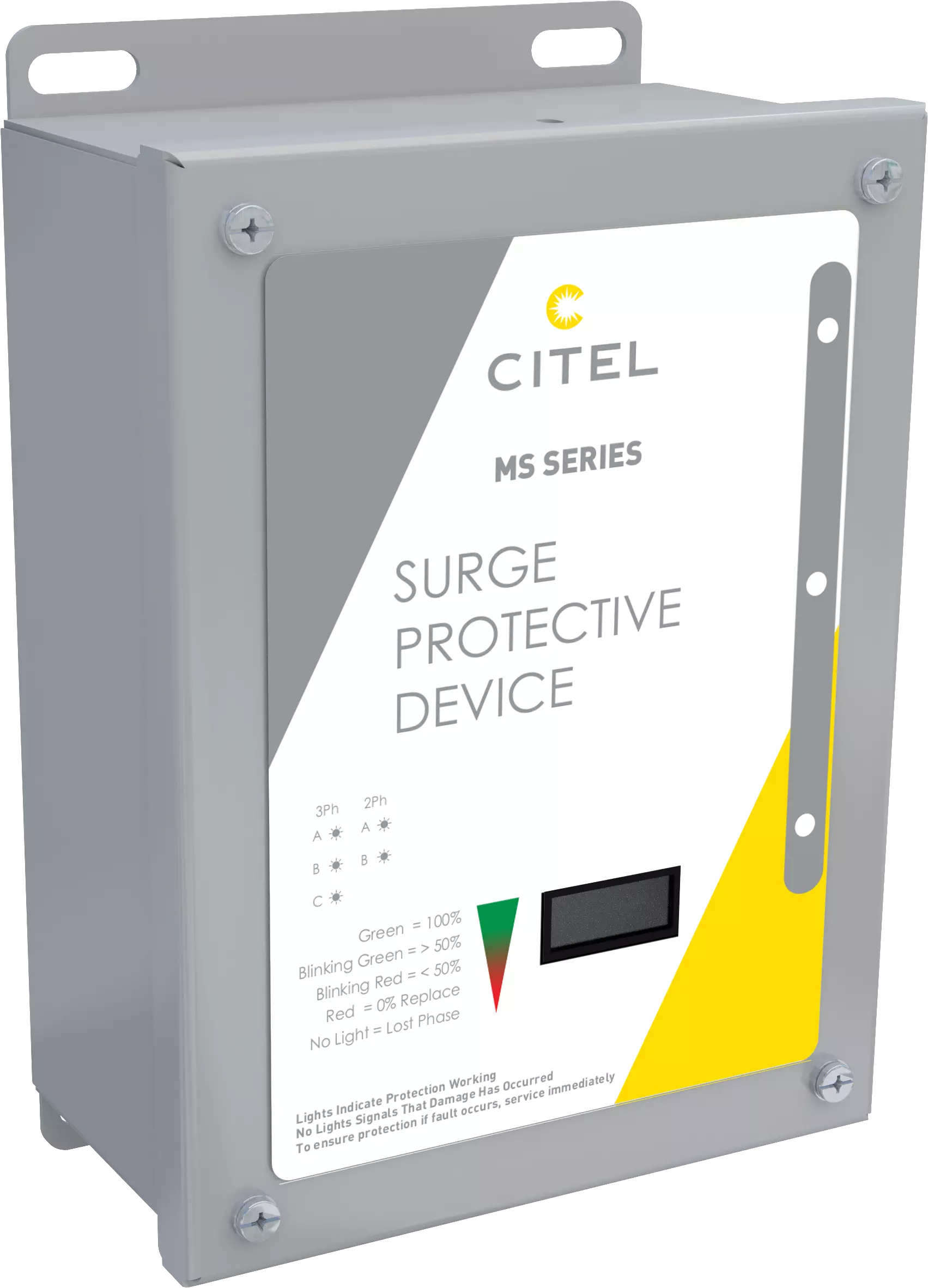

Product Image |
| |
UL.com Ratings | - | |
UL Approval | LISTED | - |
UL Mark |
| - |
SPD Type | UL 1449 5th Ed. Type 1 | - |
Volt (V) | 120/208 | 208Y/120 |
AC/DC/DC PV | AC | AC |
Phase | 3 | 3 |
Amps (A) | n/a | n/a |
Ambinet Min (C) | -35 | - |
Ambient Max (C) | +85 | - |
Mode | WYE | WYE |
VPR (Vpk) L-L L-N L-G N-G | 1000 700 700 700 | 600 700 700 1000 |
MCOV L-L L-N L-G N-G | 300 150 150 150 | - - - - |
In (kA) | 20 | 20 |
SCCR (kA) | 150 | 200 |
Additional Data Sheet Ratings | ||
Surge Current Rating (kA) per phase | 200 | 100 |
Protection Circuit | Multi-TMOV | Coordinated Fuse Technology |
Leakage Current | Yes | - |
TOV Optimized | No | - |
Diagnostics | LED Indicators | Aduible and Visual Indicators |
Environmental Rating | Steel IP65 | NEMA 4X |
Number of Wires | 5 | 5 |
Modes of Protection | Common Mode Differential Mode | Common Mode Differential Mode |
Warranty | 10-years | - |
Determining the Acceptability of an SPD for your UL Equipment
The UL inspector will first consider the SPD type when determining it’s acceptability for a given application or piece of equipment. The first level compliance is based on the UL Approval (LISTED or RECOGNIZED) of the SPD or UL SPD Type and it’s Suitable Ratings. This means that it has to meet all safety, performance, environmental and electrical system ratings of the application. If any of these criteria are not fully met, it will require a Procedure Description, a File Update and/or Additional Testing. These actions will require additional costs that may be substantial. For this reason, it is in the interest of the specifier to use UL LISTED SPD’s to eliminate any uncertainty or to make sure the UL RECOGNIZED SPD is selected at the time of UL submittal of the equipment.
Approval Considerations Table based on UL SPD Type
UL Mark | UL 1449 SPD Type | Suitable Ratings | Procedure Described | File Update or Additional Testing | Notes |
|---|---|---|---|---|---|
| 1 2 | Yes | No | No | The only requirement is that the SPD must match electrical and environmental ratings of the UL 508A Control Panel. A UL field inspection of the control panel with the SPD installed is required as a part of a standard follow-up service visit. |
| 1CA 2CA 4CA 5 | Yes | Yes | Yes | Yes – All UL recognized SPD’s require a UL engineering evaluation of the SPD’s existing UL 1449 E–file. This will result, at a minimum, in a cost to update the UL file and may also require testing that would result in additional costs. |
UL data is publicly available with a free account at UL.com. The data has been reviewed by our engineering department. From time to time, the applicants UL file (including CITEL's) may become changed or updated at UL.com due to new testing or corrections to a report. At the time of this comparison you will find this information to be accurate to the UL web site. If you find any information requires an update, please bring to our attention and it will be updated immediately. |
Latest Revision - 7.24.2026
