POLYPHASER GT-NFF-AL Alternate CITEL P8AX25-6G-N/FF Surge Protector SPD

Citel Logo

POLYPHASER GT-NFF-AL
Comparison CITEL P8AX25-6G-N/FF
Surge Protective Device (SPD)

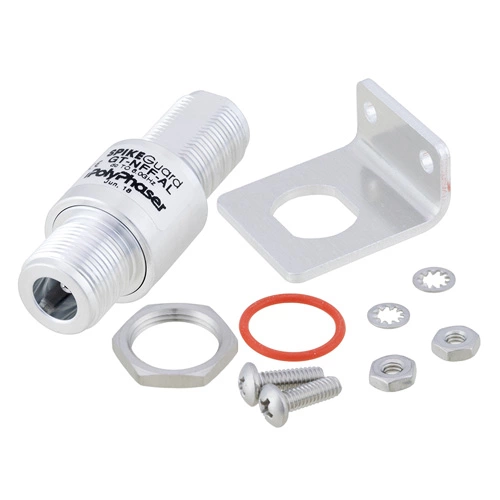

P8AX25-6G-NFF GT-NFF-AL Photo
CITEL
P8AX25-6G-N/FF
RF Surge Protector
POLYPHASER
GT-NFF-AL
RF Surge Protector

Intended Application System

SystemRF Coaxial
Conductors1W+Shield+Ground
ConnectorShielded Coaxial
ConfigurationSingle Coaxial

PRODUCT COMPARISON TABLE

This page collects publicly available data from ul.com and assembles a side by side reference table for a convenient product cross reference.

Manufacturer Citel Logo Polyphaser
UL File #E349646
-
ModelP8AX25-6G-N/FFGT-NFF-AL

Product Image P8AX25-6G-NFF GT-NFF-AL Photo

UL.com Ratings


UL CARD

-
UL APPROVALLISTED
-
UL MARK
-
SPD TypeUL497E
-
Frequency Range0 – 6.9GHz0 – 6GHz
Insertion Loss≤ 0.2 dB≤ 0.35 dB
**Return Loss19 dB-
VSWR @ 90Mhz1.25:11.4:1
Connector TypeN-TypeN-Type
Connector GenderFemale-FemaleFemale -Female
Impedance50 ohm50 ohm
Protection CircuitGDTGDT
DC CircuitDC PASSDC PASS
Line Voltageup to 48V60 V
Line Current10 AmpsN/A
Imax (kA) 8/20us x 12020
Maximum Power (Watts)
220-700MHz		240 W90 W
NEMA Rating
IP Rating		IP67IP67
Installation LocationIndoor or
Outdoor		Indoor or
Outdoor
Ambient Min (C)
Operating		-40-50
Ambient Max (C)
Operating		8585
GroundingM6 Screw, Bulkhead, BracketFlange
MountingBulkhead, BracketBulkhead, Flange
Environmental
Rating		ROHSROHS
Warranty10-years10 Year
Limited Warranty
UL data is publicly available with a free account at UL.com. The data has been reviewed by our engineering department. From time to time, the applicants UL file (including CITEL's) may become changed or updated at UL.com due to new testing or corrections to a report. At the time of this comparison you will find this information to be accurate to the UL web site. If you find any information requires an update, please bring to our attention and it will be updated immediately.
