STXP480Y10
Comparison CITEL MP100-277Y
Surge Protective Device (SPD)
CITEL | MERSEN |
Intended Application System | |
System Voltage | 480/277 |
Number of Phases | 3Y |
Conductors | 4W+G |
Configuration | WYE |
PRODUCT COMPARISON TABLE
This page collects publicly available data from ul.com and assembles a side by side reference table for a convenient product cross reference.
Manufacturer | ||
UL File # | E326289 | E210793 |
Model | MP100-277Y | STXP480Y10 |

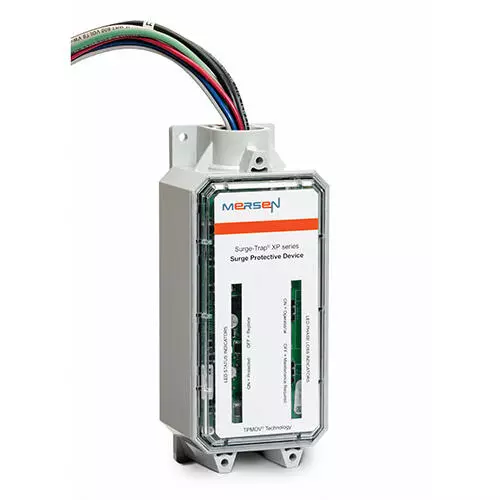

Product Image | ${ITEM_LINK#2178940}<-No Item, #2178940 | |
UL.com Ratings | UL CARD | UL CARD |
UL APPROVAL | LISTED | LISTED |
UL MARK | ||
SPD Type | Type 1 | Type 1 |
Volt (V) | 480/277 | 480/277 |
AC/DC DC PV | AC | AC |
Phase | 3Y | 3Y |
Amps (A) | n/a | n/a |
Ambient Min (C) | -35 | -40 |
Ambient Max (C) | 85 | 85 |
Mode | ||
L-L L-N L-G N-G | L-L L-N L-G N-G | L-L L-N L-G N-G |
VPR (Vpk) | ||
L-L L-N L-G N-G | 1800 1000 1200 1000 | 2000 1200 1200 700 |
MCOV | ||
L-L L-N L-G N-G | 640 320 320 320 | 640 320 320 150 |
In (kA) | 20 | 20 |
SCCR (kA) | 150 | 200 |
Additional | ||
Surge Current Rating (kA) | 132 | 100 |
Protection Circuit | Multi-TMOV | TPMOV |
Leakage Current | Yes | Yes |
TOV Optimized | No | No |
Diagnostics | LED/phase & Audible Alarm & Remote Contacts | LED |
Environmental Rating | NEMA 4X | NEMA 4X |
# of Wires | 5 | 5 |
Modes of Protection | Common Mode Differential Mode | Common Mode Differential Mode |
Warranty | 10-years | 10-years |
|
UL data is publicly available with a free account at UL.com. The data has been reviewed by our engineering department. From time to time, the applicants UL file (including CITEL's) may become changed or updated at UL.com due to new testing or corrections to a report. At the time of this comparison you will find this information to be accurate to the UL web site. If you find any information requires an update, please bring to our attention and it will be updated immediately.
