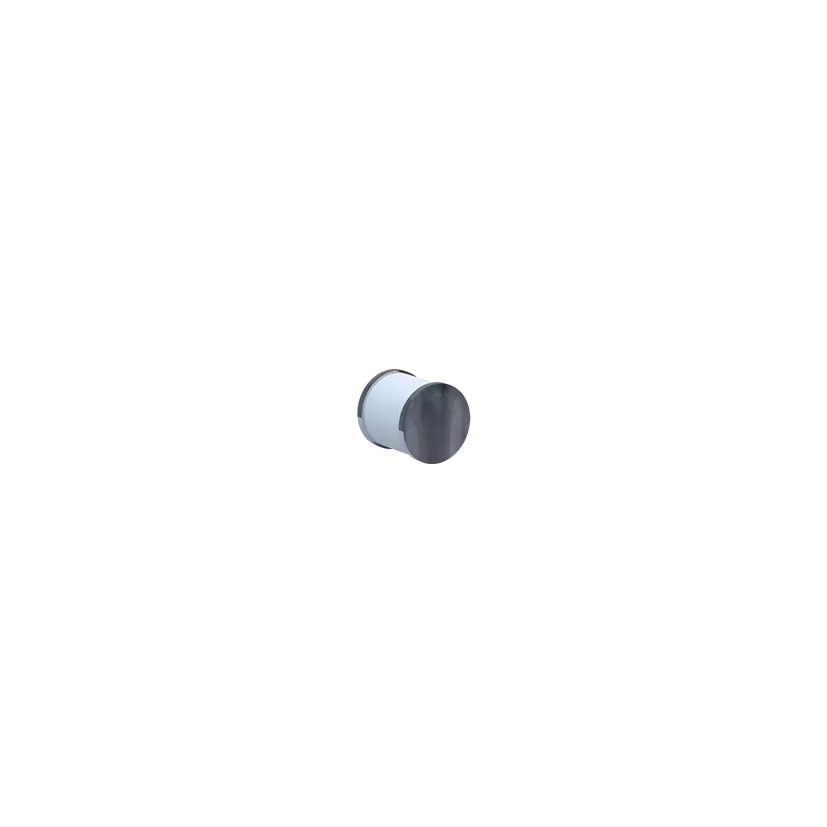

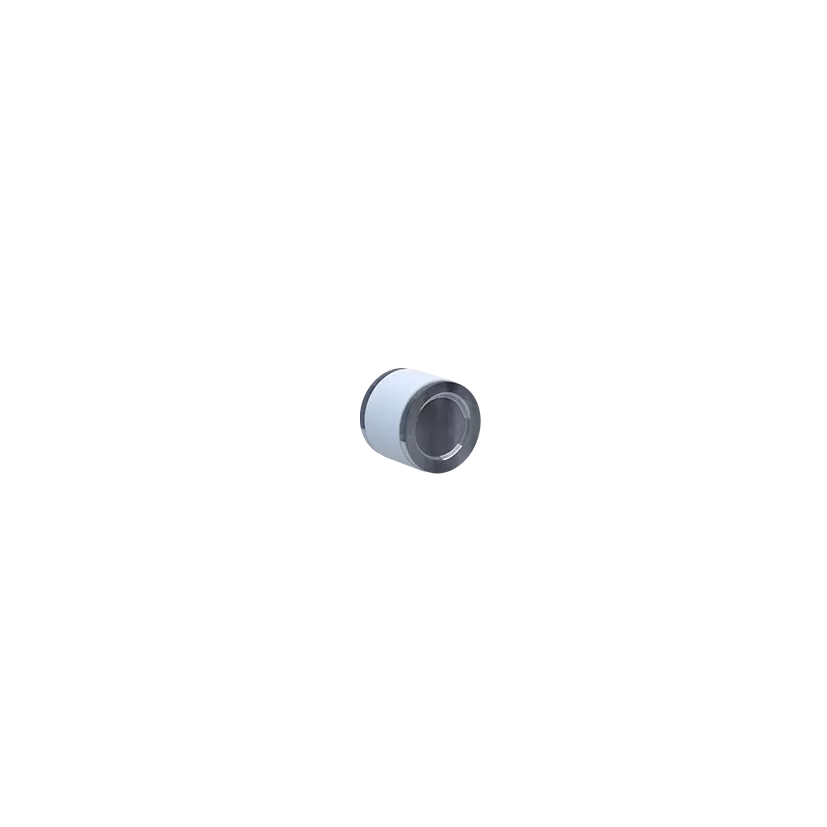

GAS TUBE SURGE ARRESTORS FOR COAXIAL LINE PROTECTION OVERVIEW The Insurance Institute for Business & Home Safety found that an estimated $26B dollars annually is lost due to non-lightning power surges. Additionally, the are an estimated 25 million lighting strikes in the US each year that cause between $650M to $1B in losses according to the Insurance Institute, State Farm . Today's electronics must be protected from threats due to lighting, power surges and power induction. How Gas Tubes Operate Gas Discharge Tube (GDT) Surge Arrestors operate on the principle of arc discharge. Operating as a voltage-dependent switch, an arc is formed within nano-seconds inside the hermetically sealed discharge chamber once a voltage exceeds the GDTs spark-over voltage. During its on-state, the gas tube essentially forms a short circuit allowing the entire surge current to flow and instantaneously eliminating the overvoltage transient. Upon dissipation of the overvoltage event, the GDT device extinguishes and the internal resistance returns to its high impedance off-state. GDT devices reliably limit over voltages to permissible levels, can handle large surge currents and are invisible to the system being protected due to low capacitance and very high insulation resistance. Coaxial Port Protection Coaxial cables that extent 10m/30ft into an outside environment can be expected to be exposed to transients caused by lighting and power surge related events. Coaxial cables entering an equipment cabinet or enclosure must be protected while attached equipment such as Cameras or Antennas should also utilize some type of surge protection. Gas tubes due to their high surge current carrying capabilities, extremely low capacitance and high off-state impedance are ideal for high frequency applications requiring surge protection. As shown below, the GDT is typically connected between the center conductor of the coaxial cable and ground. Coaxial Line Protection using a GDT Selecting the appropriate Gas Tube When selecting a GDT for coaxial applications there are two key considerations. Voltage on then center conductor and the expected exposure of the cable to surges. The general rule for selecting a gas tubes voltage is that its minimum DC Sparkover Voltage must be selected to be greater than the peak voltage rating of the line being protected. Secondly, Peak and Nominal current ratings should also be considered as GDT are available current ratings ranging from light duty to heavy duty depending on size. For a coaxial system operating a <65V a 90V +/- 20% GDT can be selected since the low end of its DC Breakdown tolerance is 72V which is greater than the 65V Vpk rating of the coaxial system. Recommended GDT Part NumberPeak System VoltageExposure LevelInLink BA CMS 90/20<65VLight5kA BB 90/20<65VMedium10kA BH 90/20<65VHeavy20kA References #Title 1ITU K.12, Characteristics of gas discharge tubes for the protection of telecommunications installations 2UL497B, Surge Protectors for Data Lines and Fire-Alarm Circuits 3UL497E, Protectors for Antenna lead-in conductors Contact us to develop a surge mitigation solution for your application Where to purchase Citel GDT's
