PANELMOUNT AC
M50F-277Y-B
Part Number 750511
Available within 3 weeks
- Hybrid MOV-GSG Technology
- UL1449 Type 1 LISTED
- 50kA Surge Current Rating per mode
- Extended life with no leakage current
- Visual LED fault indicator and audible alarm
- NEMA 6 (exceeds NEMA 4X or 4)
- Optional Type 2 LISTED with UL1283 Filter
- 10-Year warranty
Datasheet
Select another reference:
|
Let through Voltage
Ures at 20kA
|
V N-G | 1500 V |
|
POWER SPD TYPE
|
UL1449 TYPE 2 LISTED | |
|
VOLTS
|
(V) | 277/480 |
|
AC/DC/DC PV/RF
|
AC | |
|
PHASE
|
(PH) | 3Y |
|
AMPS
|
(A) | N/A |
|
AMBIENT MIN
|
(C) | -35 |
|
AMBIENT MAX
|
(C) | +80 |
|
MODES
|
L-L, L-N, L-G, N-G | |
|
VPR
|
(V) | 2500/1200/1500/1200 |
|
MCOV
|
(V) | 560/320/320/280 |
|
IN
15 impulses 8/20µs
|
(kA) | 20 |
|
SCCR
|
(kA) | 150 |
|
IMAX
8/20µs
|
(kA) | 50 |
|
Weight
|
1.34 kg | |
|
TECHNOLOGY
|
MOV-GSG | |
|
NETWORK CONFIGURATION
|
3PH, 4W+G, Wye | |
|
CONNECTION METHOD
|
36" #12 AWG LEADS | |
|
MOUNTING
|
SIDE MOUNT, THREADED M22 (1/2" NPT ADAPTER) | |
|
MATERIAL
|
Aluminum cast | |
|
NEMA RATING (IP RATING)
|
6 | |
|
FAIL-SAFE BEHAVIOR
|
Yes, no upstream over current protection required | |
|
REAL-TIME DIAGNOSTICS
|
LED and audible alarm | |
|
DIMENSIONS
|

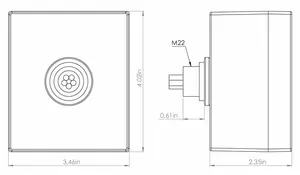

See diagram | |
|
WEIGHT
|
2.5 lbs. |
|
UL STANDARD
|
UL1449 5th Edition | |
|
UL CATEGORY
|
VZCA, VZCA7 | |
|
UL FILE NUMBER
|
E326289 | |
|
STANDARDS
|
NOM-003-SCFI-2014, NOM-001-SCFI-1993 | |
|
ENVIRONMENTAL STANDARDS
|
ROHS |
|
Operating Temperature
Min
|
°C | -40 °C |
|
Operating Temperature
Max
|
°C | 85 °C |
|
Operating Temperature
Min
|
°F | -40 °F |
|
Operating Temperature
Max
|
°F | 85 °F |
|
Operating Relative Humidity
Max
|
%RH | Can be submerged |
|
Operating Altitude
Min
|
Ft | 2000 Ft |
|
Operating Altitude
Max
|
Ft | 6500 Ft |
|
Housing/Enclosure material
|
Aluminum cast | |
|
Mounting
|
Side mount | |
|
IP Environmental rating
IP
|
IP66 | |
|
NEMA Environmental rating
NEMA
|
NEMA 6 | |
|
Installation Location
|
Indoor / outdoor | |
|
Accessories
|
brackets | |
|
Product Dimension
L
|
mm | 102 mm |
|
Product Dimension
H
|
mm | 62 mm |
|
Product Dimension
W
|
mm | 88 mm |
|
Product Dimension
L
|
In | 4.016 In |
|
Product Dimension
H
|
In | 2.441 In |
|
Product Dimension
W
|
In | 3.465 In |
|
Individual Pack
|
Yes | |
|
Storage Temperature
Min
|
°C | -40 °C |
|
Storage Temperature
Max
|
°C | 85 °C |
|
Storage Temperature
Min
|
°F | -40 °F |
|
Storage Temperature
Max
|
°F | 85 °F |
|
Waranty
|
10 Years |
